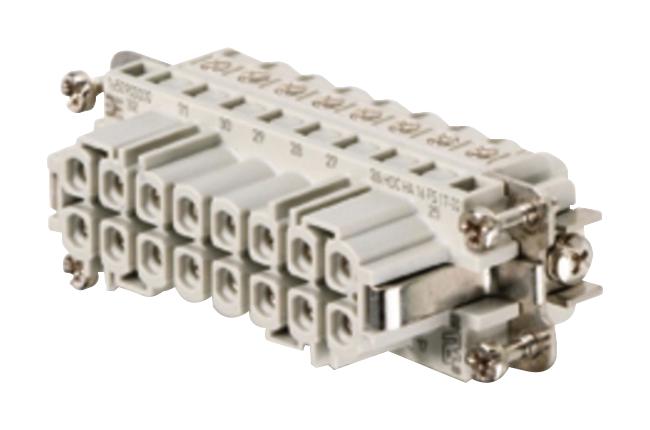

WEIDMULLER HDCHA16FS1732 Female connector module
The HDC insert series is a compact and versatile connector designed for space-constrained applications. It features a female interface capable of handling 250 V and 16 A with a 16-pole screw connection, suitable for efficient and reliable electrical connections. Constructed from copper alloy with silver passivation, it ensures excellent electrical conductivity, insulation resistance exceeding 10^6 Ω, and a flammability rating of UL 94V-0. The device supports up to 2500 plugging cycles, operates within temperatures of -40°C to 125°C, and is designed for use with conductors up to 2.5 mm² or AWG 14. Its robust construction and precise torque specifications guarantee secure connections, making it ideal for industrial wiring and automation systems.
WEIDMULLER HDCHA16FS1732 Female connector module Specifications:
- Rated voltage: 250V, max current: 16A
- Number of poles: 16
- Connection type: screw connection
- Material: Copper alloy with silver passivation
- Insulation resistance: >10^6 Ω at 500V DC
- Voltage rating UL/CSA: 600V
- Flammability: UL 94V-0
- Temperature range: -40°C to 125°C
- Conductor cross-section: 2.5 mm² / AWG 14 max, min 0.5 mm² / AWG 20
- Fixing screw: M4, Torque: 1.2–1.5 Nm
- Dimensions: Length 73 mm, Width 23 mm, Height 31.1 mm
- Net weight: 719 g
- Number of plugging cycles: 2500
- Volume resistance: <2 mΩ
Buy the Weidmueller Series HDC: HDC HA 16 FS 17-32
Purchase the Weidmueller HDC HA 16 FS 17-32 connector online now to ensure secure and efficient connections in your industrial automation projects. Designed for space-limited applications, this 16-pole screw connection unit features high-quality copper alloy construction with silver passivation for excellent electrical conductivity and corrosion resistance. Rated for 250V and 16A, it supports up to 2500 plugging cycles, making it suitable for demanding industrial environments. With robust dimensions of 73mm length, 23mm width, and 31.1mm height, it's ideal for ensuring reliable power and signal transmission in control cabinets, automation systems, and machinery, offering long-term durability and safety.
Get Weidmueller HDC HA 16 FS 17-32 today—built for reliable industrial connections and long-lasting durability.
