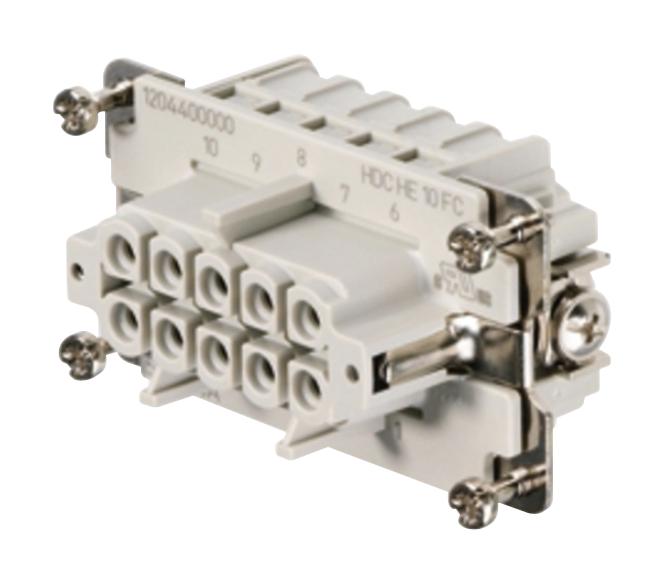

Weidmuller HDCHE10FC Industrial Crimp Connector
The HDC HE 10 FC is a 10-pole female connector featuring a crimp connection for reliable wire attachment. Designed for industrial automation, it handles a rated current of 16 A and voltage of 500 V, with a maximum operating temperature of 125°C. Made of copper alloy with a silver passivated and gold finish, it offers high durability and excellent electrical conductivity. The connector supports up to 2500 plug cycles, with protective insulation of UL-listed PC glass-fibre reinforced material, ensuring safety and long-lasting performance in demanding electrical applications.
Weidmuller HDCHE10FC Industrial Crimp Connector Specifications:
- Dimensions: Length 64mm, Width 34mm, Height 33.5mm
- Material: Copper alloy, Insulating material: PC glass-fibre reinforced
- Rated current: 16 A, Rated voltage: 500 V, UL/CSA: 600 V AC/DC
- Max temperature: 125°C, Minimum temperature: 40°C
- Number of poles: 10, Connection type: Crimp
- Plugging cycles: 2500 gold-plated, 2500 silver-plated
- Connection cross-section: Max 4mm², Min 0.5mm²
- Wire cross-section AWG: Max 12, Min 20
- Surface finish: Silver passivated with gold
- Insulation resistance: 10^9 Ω, Volume resistance: specified in datasheet
- UL flammability rating: V0, Certifications: UL Listed, compliant with DIN EN 61984
Buy the Weidmueller Series HDC HDC HE 10 FC Connector: 1204400000
Order the Weidmueller HDC HE 10 FC connector online today to benefit from high-quality, durable wiring solutions. Designed for industrial automation, it provides 16 A current capacity and 500 V voltage rating, ensuring secure connections. Made from copper alloy with a robust silver passivation and gold finish, it supports up to 2500 plug cycles for long-term use. Easy to install with a crimp connection, this connector is ideal for demanding electrical applications, offering reliability, safety, and compliance with international standards.
Get Weidmueller HDC HE 10 FC connector today—built for industrial precision and long-lasting durability. Perfect for reliable electrical connections in demanding environments.
Frequently Asked Questions
Where can I buy Weidmuller HDCHE10FC?
You can click on the BUY or RFQ button to purchase HDCHE10FC from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHE10FC?
You can download the HDCHE10FC datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHE10FC?
Weidmuller
