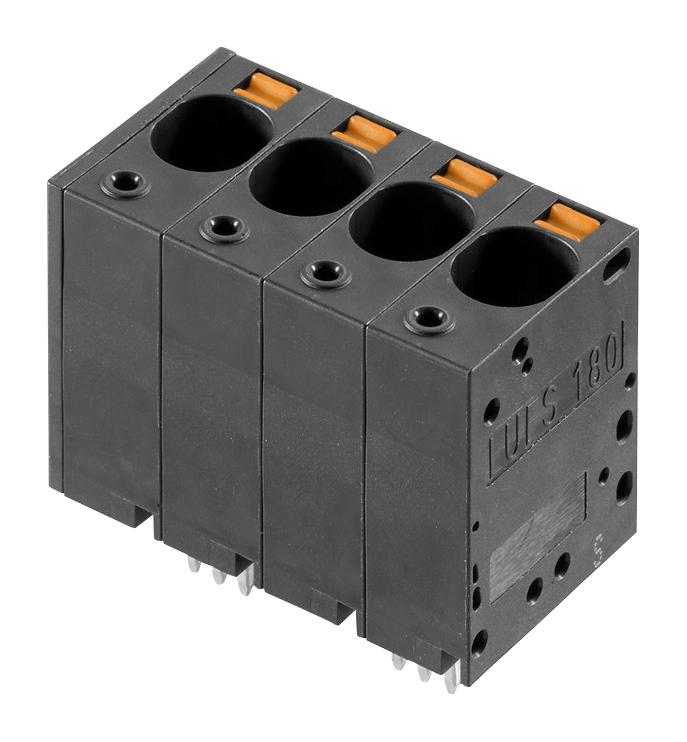

WEIDMULLER 2492110000 PCB Terminal Block
The WEIDMULLER OMNIMATE Power series LU LUFS 10.00/02/180V 5.0SN BK BX is a high-performance PCB terminal designed for reliable connections in various industrial applications. Its PUSH IN connection system allows for quick and tool-free conductor termination, while the 'Connection Safety Concept' ensures secure clamping. The integrated test point simplifies testing and troubleshooting. Constructed with Wemid (PA) insulating material, this terminal block offers increased derating reserves and is suitable for demanding environments. It is ideal for applications requiring robust and efficient power distribution.
WEIDMULLER 2492110000 PCB Terminal Block Specifications:
- Base Material: E-Cu
- Insulating Material: Wemid (PA)
- Color: Black
- Flammability Rating: V-0
- Contact Plating: tinned (4-10µm Sn matt)
- Operating Temperature Min: -40 °C
- Operating Temperature Max: 120 °C
- Storage Temperature Min: -25 °C
- Storage Temperature Max: 55 °C
- Insulation Resistance: ≥ 108Ω
- Conductor Outlet Direction: 180°
- Clamping Range Min: 0.5 mm²
- Clamping Range Max: 16 mm²
- Solid Conductor Max: 16 mm²
- Stranded Conductor Max: 16 mm²
- Flexible Conductor Max: 16 mm²
- AWG Wire Size Min: 18
- AWG Wire Size Max: 4
- Rated Voltage IEC: 1000 V
- Rated Current IEC: 76 A
- Rated Voltage CSA: 600 V
- Rated Current CSA: 57 A
- Rated Voltage UL: 600 V
- Rated Current UL: 57 A
- Pitch: 10 mm
- Solder Pin Length: 5 mm
- Solder Eyelet Hole Diameter: 1.6 mm
- Solder Eyelet Hole Diameter Tolerance: + 0,1 mm
- Stripping Length: 18 mm
- Touch-Safe Protection: IP20 plugged / IP10 unplugged
- Approvals: cURus E60693
