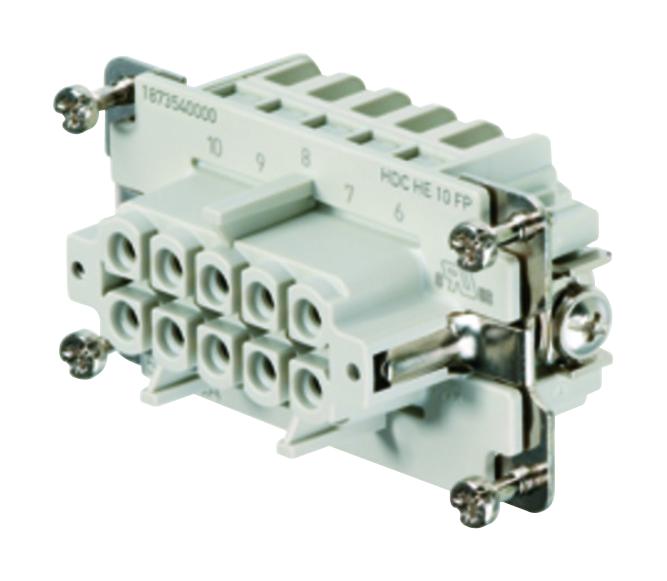

Weidmuller HDCHE10FP Push-In Connector
The HDC HE 10 FP is a 10-pole push-in connector designed for quick, tool-free wire insertion with a rated current of 16 A and voltage of 500 V. Made of durable PC glass-fiber reinforced insulation, it features silver passivated copper contacts and a compact size with dimensions of 64mm length, 34mm width, and 33.8mm height. Suitable for industrial wiring applications, it offers high plug-in cycles, reliable connection, and easy installation, ensuring efficiency and safety in electrical systems.
Weidmuller HDCHE10FP Push-In Connector Specifications:
- Number of poles: 10
- Rated current: 16 A
- Rated voltage: 500 V
- Nominal voltage according to UL/CSA: 600 V AC/DC
- Dimensions: Length 64mm, Width 34mm, Height 33.8mm
- Weight: 61g
- Insulating Material: PC glass-fiber reinforced
- Contact Material: Copper alloy
- Surface Finish: Silver passivated
- Connection Type: PUSH IN
- Wire connection cross section, finely stranded: Max. 2.5 mm2
- Wire connection cross section, solid: Min. 0.5 mm2
- Screw connection: M4
- Tightening torque: Max. 1.5 Nm, Min. 1.2 Nm
- Temperature Range: -40°C to +125°C
- Number of plugging cycles: 2500
- Pollution severity: 3
- Certifications: UL Listed, Railway-certified
Buy the Weidmueller HDCHE10FP – Reliable Industrial Push-In Connector for Wiring
Order the Weidmueller HDCHE10FP connector today to ensure efficient wiring in your industrial projects. With a robust design, quick tool-free insertion, and high cycle durability, this 10-pole connector is ideal for reliable electrical connections. Its compact size, silver passivated contacts, and temperature resistance from -40°C to 125°C make it perfect for demanding environments. Purchase online now to benefit from fast delivery, trusted quality, and seamless integration into your electrical setups.
Get Weidmueller HDCHE10FP today—built for precision, durability, and reliable electrical connections in industrial applications.
Frequently Asked Questions
Where can I buy Weidmuller HDCHE10FP?
You can click on the BUY or RFQ button to purchase HDCHE10FP from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHE10FP?
You can download the HDCHE10FP datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHE10FP?
Weidmuller
