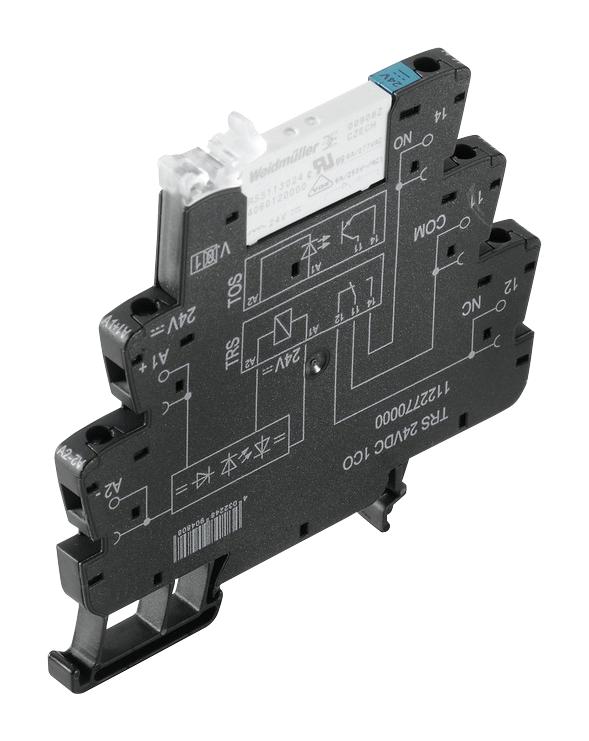

WEIDMULLER 1122750000 Relay Module
The TERMSERIES relay module features a compact design with dimensions of 6.4mm width, 89.6mm height, and 87.8mm depth, weighing 339 grams. It operates within temperatures from -40°C to 60°C and is compliant with environmental standards including REACH SVHC Lead. This relay has a rated control voltage of 12V DC with a 20% tolerance, a coil power of 210mW, and a pull-in/drop-out voltage of approximately 9V/2V. It uses a reliable AgNi contact rated for 6A at 250VAC, with a mechanical life of 5 x 10^6 cycles, and features a screw connection method, UL UL 94V-0 flammability rating, and protection degree IP20.
WEIDMULLER 1122750000 Relay Module Specifications:
- Width: 6.4mm (0.252 inches)
- Height: 89.6mm (3.528 inches)
- Depth: 87.8mm (3.457 inches)
- Weight: 339 grams
- Operating Temperature Range: -40°C to 60°C
- Rated Control Voltage: 12V DC ±20%
- Coil Power: 210mW
- Pull-in/Drop-out Voltage: approximately 9V/2V
- Contact Material: AgNi
- Contact Current Rating: 6A
- Switching Voltage: Max 250VAC/DC
- Mechanical Life: 5 million cycles
- Connection Method: Screw connection
- Protection Degree: IP20
- UL Flammability Rating: V-0
- Pollution Severity Level: 2
- Dielectric Strength Input-Output: 4kV for 1 min
- Impulse Withstand Voltage: 6kV (1.2/50 μs)
Buy the Weidmueller Series TRS 12VDC 1CO: 1122750000
Discover the reliable Weidmueller Series TRS 12VDC 1CO relay module, featuring a compact 6.4mm width, 6A switching capacity, and AgNi contacts. Designed for industrial environments, it operates efficiently within -40°C to 60°C temperatures. Its UL UL 94V-0 flammability rating ensures safety, while the IP20 degree provides good environmental protection. Suitable for controlling resistive loads with high switching stability and a mechanical lifespan of 5 million cycles, this relay is ideal for automation, control systems, and various industrial applications. Buy online now for dependable performance.
Order your Weidmueller Series TRS 12VDC 1CO relay module today and ensure reliable switching and control for your automation projects.
Frequently Asked Questions
Where can I buy WEIDMULLER 1122750000?
You can click on the BUY or RFQ button to purchase 1122750000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1122750000?
You can download the 1122750000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1122750000?
WEIDMULLER
