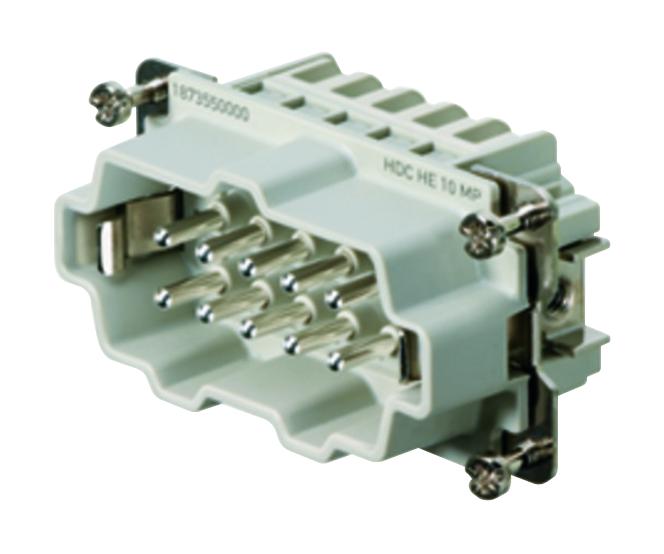

Weidmuller HDCHE10MP Push-in Connection Block
The HDC HE 10 MP is a 10-pole push-in connection module designed for efficient wiring with direct insertion technology. Rated for 16 A and 500 V, it features a compact size with a length of 64 mm, width of 34 mm, and height of 34.3 mm. Constructed with PVC glass-fibre-reinforced insulating material, it offers high insulation resistance and durability. Suitable for industrial electrical connections, it supports up to 2500 plugging cycles with a silver-plated contact surface, making it ideal for reliable, quick wiring without tools.
Weidmuller HDCHE10MP Push-in Connection Block Specifications:
- Number of poles: 10
- Rated current: 16 A
- Rated voltage: 500 V
- Nominal voltage according to UL/CSA: 600 V AC/DC
- Length: 64 mm (2.52 inch)
- Width: 34 mm (1.339 inch)
- Height: 34.3 mm (1.35 inch)
- Net weight: 56 g
- Insulating material: PC glass-fibre reinforced
- Material: Copper alloy, silver passivated surface
- Tightening torque: Max 1.5 Nm, Min 1.2 Nm
- Connection type: PUSH IN
- Wire cross-section: max. 2.5 mm² (finely stranded with wire-end ferrules), min. 0.5 mm²
- Flammability rating: V-0 (UL 94)
- Insulation resistance: 10^9 Ω
- Number of plugging cycles: 2500
- Temperature range: -55°C to +125°C
Buy the Weidmueller Series HDC Connection Module: HDC HE 10 MP
Order the Weidmueller HDC HE 10 MP online today for quick, tool-less wiring with durable connections designed to withstand demanding industrial environments. Its compact size and high cycle life ensure efficient installation and reliable performance. Perfect for electrical panels, control cabinets, and industrial automation systems, this 10-pole connector offers fast insertion and secure contact. Trust Weidmueller's quality to streamline your wiring process, reducing installation time and enhancing system reliability. Buy now to experience the convenience and durability of this professional-grade connection module.
Get Weidmueller HDC HE 10 MP today—built for reliable, tool-free wiring in industrial electrical applications.
