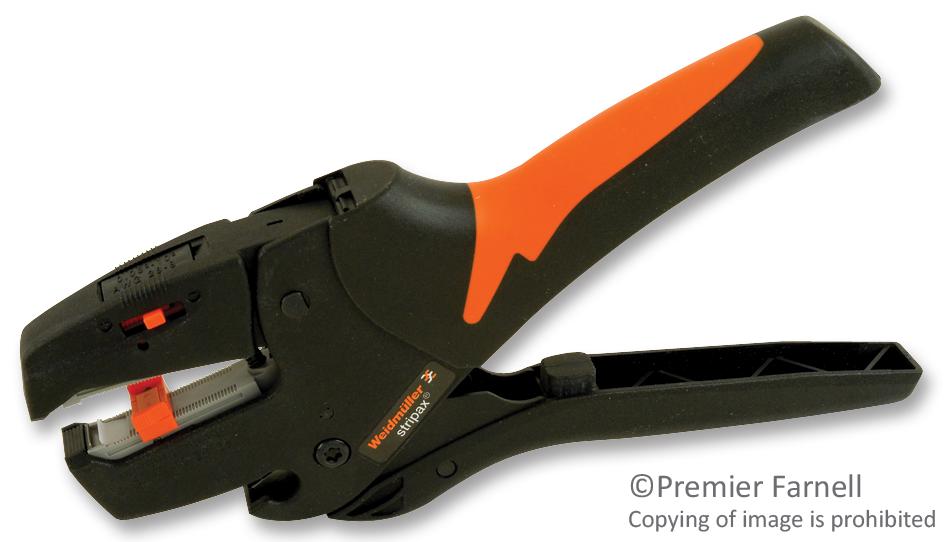

WEIDMULLER 9005000000 STRIPAX Stripping Tool
The Weidmuller STRIPAX is a versatile stripping and cutting tool engineered for mechanical and plant engineering, railway, wind energy, robotics, explosion protection, marine, offshore, and shipbuilding sectors. It automatically adjusts to different conductor sizes, preventing fanning-out and accommodating double-insulated cables. Its long service life and optimized ergonomic design ensure efficient and reliable wire preparation for a wide range of applications.
WEIDMULLER 9005000000 STRIPAX Stripping Tool Specifications:
- Type: STRIPAX
- Version: Tools, Stripping and cutting tool, Flexible and solid conductors with PVC insulation
- Conductor_cross_section_max: 10 mm²
- Conductor_cross_section_min_AWG: AWG 28
- Stripping_range_min: 0.08 mm²
- Conductor_cross_section_cutting_capacity: 6 mm²
- Strippinglength_max: 25 mm
- Width: 190 mm
- Height: 99 mm
- Depth: 22 mm
- Weight: 225 g
- Width_inches: 7.48 inch
- Height_inches: 3.898 inch
- Depth_inches: 0.866 inch
- Net_weight: 222 g
- REACH_SVHC: Lead 7439-92-1
- ETIM_6.0: EC002109
- eClass_9.0: 21-04-37-06
- eClass_10.0: 21-04-37-06
- ETIM_7.0: EC002109
- eClass_9.1: 21-04-37-06
- UNSPSC: 23-17-16-04
