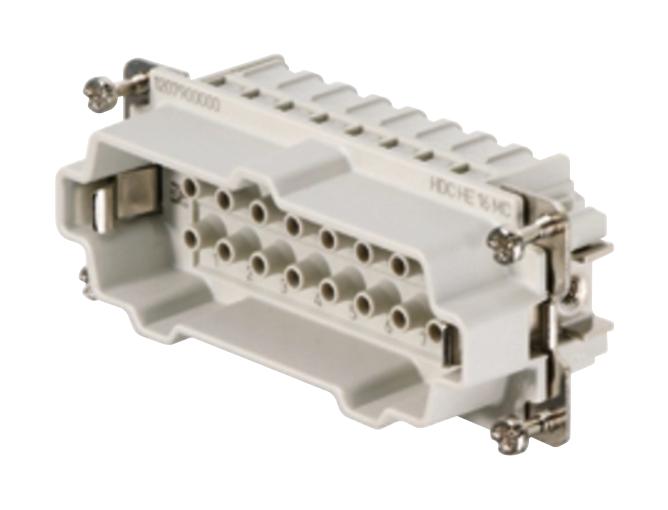

Weidmuller HDCHE16MC Industrial Connector
The HDC HE 16 MC is a 16-pole connector insert designed for crimp connections, rated at 500 V and 16 A, suitable for industrial automation and control systems. Made of copper alloy with a silver passivated, gold surface finish, it features a length of 84.5 mm, width of 34 mm, and height of 34 mm. The connector supports up to 2500 plugging cycles and operates efficiently within temperature limits of 40°C to 125°C. Its rugged design ensures reliable, high-quality electrical connections in demanding environments.
Weidmuller HDCHE16MC Industrial Connector Specifications:
- Number of poles: 16
- Rated voltage: 500 V
- Rated current: 16 A
- Material: Copper alloy
- Surface finish: Silver passivated, gold
- Length: 84.5 mm
- Width: 34 mm
- Height: 34 mm
- Temperature limits: 40°C to 125°C
- Insulation material: PC glass-fibre reinforced
- Connection type: Crimp connection
- Plugging cycles: 2500 (gold and silver)
- Rated impulse voltage: 6 kV
- Insulation resistance: 10^9 Ω
- Wire cross-section: 0.5 mm² to 4 mm² (solid and stranded)
- Suitable for industrial standards and certifications
- UL/CSA rated voltage: 600 V AC/DC
Buy the Buy Weidmueller HDC HE 16 MC Part Number 1207900000 Online
Enhance your control panels with the Weidmueller HDC HE 16 MC connector insert, designed for reliable crimp connections in demanding environments. With 16 poles, rated at 500 V and 16 A, and crafted from durable copper alloy with a silver passivated gold finish, this connector ensures optimal electrical performance. Its compact size (84.5 mm long) and support for up to 2500 plugging cycles make it ideal for industrial automation, manufacturing, and electrical systems. Easy to install and certified to meet safety standards, it provides dependable, high-quality connections every time.
Order your Weidmueller SeriesHDC HE 16 MC connector today and ensure your industrial wiring connections are reliable, durable, and easy to install.
Frequently Asked Questions
Where can I buy Weidmuller HDCHE16MC?
You can click on the BUY or RFQ button to purchase HDCHE16MC from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHE16MC?
You can download the HDCHE16MC datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHE16MC?
Weidmuller
