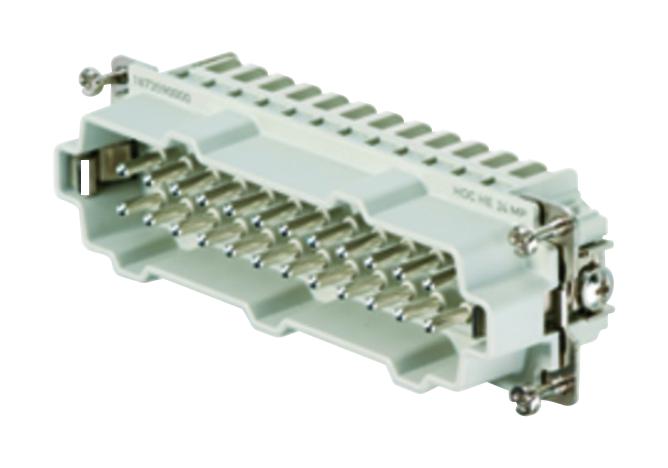

Weidmuller HDCHE24MP push-in connector
The HDC HE 24 MP is a 24-pole push-in connector designed for industrial wiring applications. It features a direct-insert connection method, allowing preprocessed wires to be inserted without tools. Rated for 16 A and 500 V, with a UL/CSA nominal voltage of 600 V AC/DC, it is made from PC glass-fibre reinforced insulation with copper alloy contacts, silver passivated, and rated for 2500 plugging cycles. Its compact size of 111mm length and 34mm width makes it ideal for reliable, tool-free electrical connections in automation and control systems.
Weidmuller HDCHE24MP push-in connector Specifications:
- Number of poles: 24
- Rated current: 16 A
- Rated voltage: 500 V
- Nominal voltage according to UL/CSA: 600 V AC/DC
- Dimensions: Length 111 mm, Width 34 mm, Height 34.3 mm
- Weight: 104 g
- Insulating material: PC glass-fibre reinforced, UL-listed
- Contact material: Copper alloy, silver passivated
- Connection type: PUSH IN
- Wire cross-section, finely stranded: Max. 2.5 mm², Min. 0.5 mm²
- Wire cross-section, solid: Max. 1.5 mm², Min. 0.5 mm²
- Screw fixing: M4, Tightening torque: 1.2 - 1.5 Nm
- Temperature range: 40°C to 125°C
- Number of plugging cycles: 2500
- Pollution severity: 3
- Surface finish: Silver passivated
- Certifications: UL Listed, Railway-certified
Buy the Weidmueller HDCHE24MP – Reliable Push-In Connector for Industrial Applications
Secure your electrical connections quickly and reliably with the Weidmueller HDCHE24MP push-in connector. Designed for industrial automation, it allows tool-free wire insertion, saving time during installation. With a compact size, rated for 16 A and 500 V, and rated for 2500 plugging cycles, this connector ensures long-term durability and reliable performance in control panels and automation systems. Simplify wiring processes and reduce downtime by purchasing online today for efficient, tool-less connectivity in demanding environments.
Buy Weidmueller HDCHE24MP now and experience unmatched reliability and performance in industrial wiring and automation systems.
Frequently Asked Questions
Where can I buy Weidmuller HDCHE24MP?
You can click on the BUY or RFQ button to purchase HDCHE24MP from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHE24MP?
You can download the HDCHE24MP datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHE24MP?
Weidmuller
