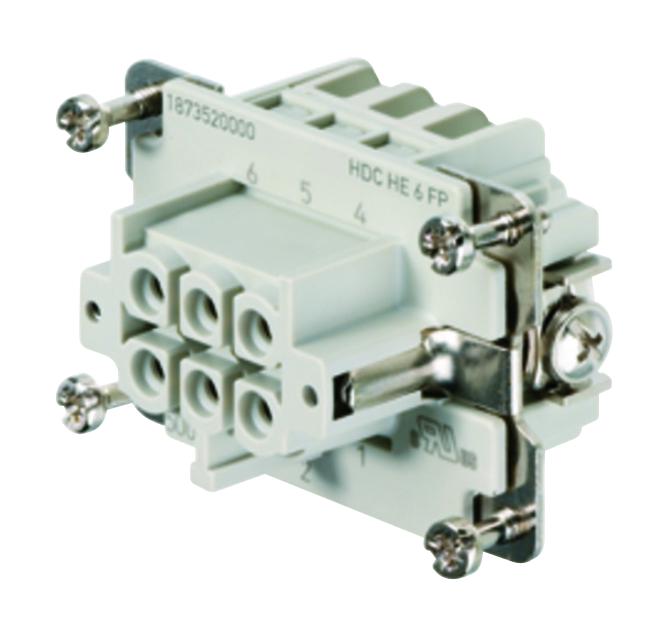

Weidmuller HDCHE6FP 6-Pole Push-In Connector
The HDC HE 6 FP is a 6-pole push-in connector designed for reliable wire connections in industrial and automation applications. It features a measurement of 51mm in length, 34mm in width, and 33.8mm in height, with a net weight of 459 grams. Constructed with a copper alloy and equipped with a silver passivated surface, the connector supports a rated current of 24A and a voltage of 500V, making it suitable for high-performance electrical systems. The connector offers quick push-in connection technology, with a maximum of 2500 plugging cycles, and complies with UL 94V-0 flammability standards, ensuring safety and durability in demanding environments.
Weidmuller HDCHE6FP 6-Pole Push-In Connector Specifications:
- Number of poles: 6
- Rated current: 24 A
- Rated voltage: 500 V
- Nominal voltage according to UL/CSA: 600 V AC/DC
- Dimensions: Length 51mm, Width 34mm, Height 33.8mm
- Material: Copper alloy, Insulating material: PC glass-fiber reinforced
- Surface finish: Silver passivated
- Flammability rating: UL 94V-0
- Connection type: PUSH IN technology
- Max plugging cycles: 2500
- Insulation resistance: 10^9 Ω
- Temperature range: -40°C to 125°C
- Tightening torque: Max 1.5 Nm, Min 1.2 Nm
- Compatible with wire cross-sections: 0.5 mm² to 2.5 mm²
- Approvals: UL Listed, CSA Certified
Buy the Weidmueller Series HDC HE 6 FP: 6-Pole Push-In Connector
Enhance your electrical connections with the Weidmueller HDC HE 6 FP. This 6-pole push-in connector ensures quick, tool-free wire insertion, high current capacity of 24A, and voltage support up to 500V. Crafted from durable copper alloy with a silver passivated surface, it guarantees longevity and safety in demanding environments. With a compact design of 51mm in length and robust UL/CSA certification, it’s ideal for automating and industrial applications. Order online today for reliable, efficient wiring solutions and streamline your installation process.
Buy Weidmueller HDC HE 6 FP now and experience unmatched reliability, quick installation, and durable performance for industrial wiring projects.
