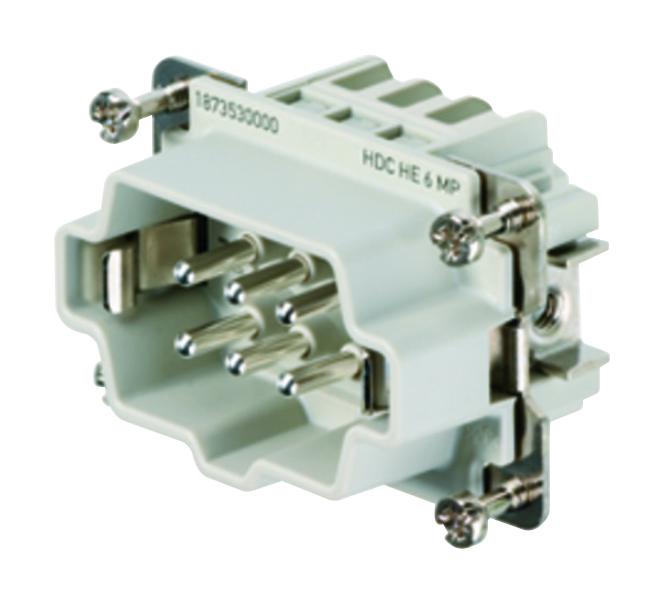

Weidmuller HDCHE6MP Industrial Power Connector
The HDC HE 6 MP is a 6-pole male connector from Weidmueller designed for reliable power and signal connections, featuring PUSH IN technology for tool-free wire insertion. This connector operates at a rated current of 24 A and voltage of 500 V, with a maximum of 600 V according to UL/CSA standards. Made from copper alloy with silver passivation, it boasts a body length of 51mm, height of 34.3mm, width of 34mm, and a weight of 439 grams. It is suitable for automation, control cabinets, and industrial wiring applications, ensuring durability and high performance over 2500 plugging cycles.
Weidmuller HDCHE6MP Industrial Power Connector Specifications:
- Number of poles: 6
- Rated current: 24 A
- Rated voltage: 500 V (UL/CSA: 600 V AC/DC)
- Material: Copper alloy with silver passivation
- Body length: 51 mm
- Height: 34.3 mm
- Width: 34 mm
- Weight: 439 grams
- Temperature range: -40°C to +125°C
- Insulation resistance: 10^9 Ω
- Plugging cycles: 2500
- Connection type: PUSH IN screw connection, M4 fixing screw
- Wire cross-section: solid 0.5–1.5 mm², stranded max 2.5 mm²
- Maximum tightening torque: 1.5 Nm
- Surface finish: Silver passivated
- Flammability rating: UL 94 V-0
- Protection standards: UL listed, railway-certified
Buy the Buy Weidmueller HDC HE 6 MP Part Number HDCHE6MP Online
Purchase Weidmueller HDCHE6MP online today and ensure versatile, durable, and easy-to-install power and control connections for industrial automation. This 6-pole connector with PUSH IN technology is designed for quick wire insertion without tools, offering a rated current of 24 A and voltage of 500 V. Made from high-quality copper alloy, it features silver passivation for corrosion resistance, a compact size of 51mm length, and durability for over 2500 connecting cycles. Ideal for control cabinets, automation systems, and industrial wiring, it guarantees high performance, safety, and reliability in demanding environments.
Buy Weidmueller HDCHE6MP now and experience unmatched reliability and high-performance industrial power connections with PUSH IN technology.
Frequently Asked Questions
Where can I buy Weidmuller HDCHE6MP?
You can click on the BUY or RFQ button to purchase HDCHE6MP from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHE6MP?
You can download the HDCHE6MP datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHE6MP?
Weidmuller
