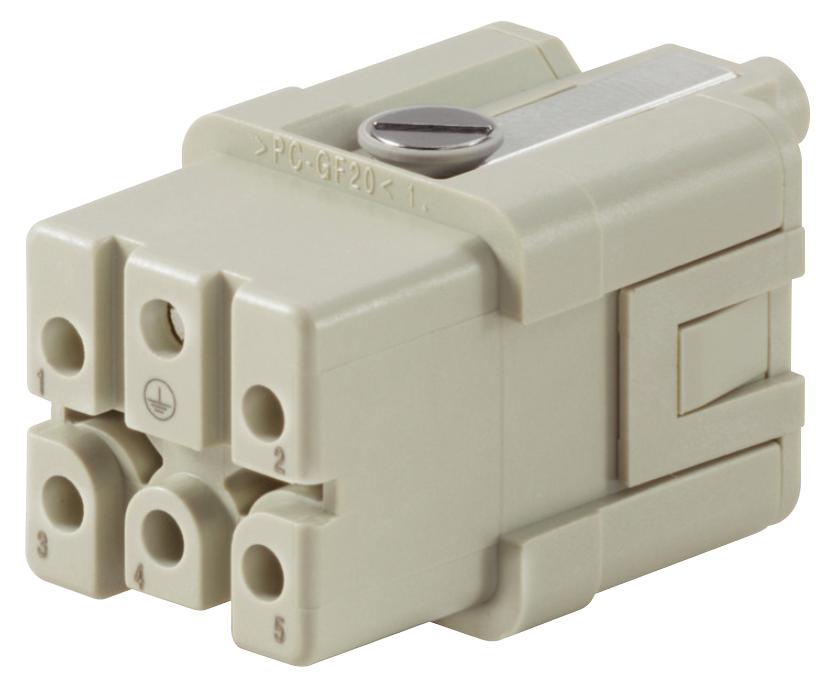

Weidmuller HDCHQ5FC Electrical Connector Insert
The HDC HO 5 FC is a compact, female electrical connector insert designed for reliable power connections in industrial and automation applications. It features a crimp connection, rated for 16A and 250V, with an operational temperature range of -40°C to +125°C. Made from sturdy PC glass-fibre reinforced insulation and copper alloy contacts, it supports 2,500 mating cycles. The connector’s silver passivated surface ensures excellent current conduction and corrosion resistance, making it suitable for demanding environments. Its dimensions are 21mm length, 21mm width, and 40.1mm height, ensuring easy integration into control panels and equipment housings.
Weidmuller HDCHQ5FC Electrical Connector Insert Specifications:
- Rated current: 16A
- Rated voltage: 250V
- Rated voltage according to UL/CSA: 600V AC/DC
- Temperature Range: -40°C to +125°C
- Dimensions: Length 21mm, Width 21mm, Height 40.1mm
- Material: PC glass-fibre reinforced insulation, Copper alloy contacts
- Number of poles: 5 (+PE)
- Connection type: Crimp connection
- Surface finish: Silver passivated, gold plated
- Insulation resistance: 10^9 Ω
- Number of plugging cycles: 2500
- Pollution severity: 3
- Certification: UL Listed, RoHS compliant
Buy the Buy Weidmiiller HDC HO 5 FC Part Number 1912460000 Online
Purchase the Weidmiller HDC HO 5 FC connector insert online for your industrial automation needs. Designed for reliable power transmission, it features a crimp connection, rated for 16A and 250V, with high durability supporting 2,500 mating cycles. Constructed from UV-resistant PC glass-fibre reinforced insulation and copper alloy contacts, it ensures safe, efficient operation in demanding environments. Its compact size and easy installation make it ideal for control panels and equipment housings, providing long-lasting, secure electrical connections easily ordered from our trusted online store.
Get Weidmiiller HDC HO 5 FC today—built for reliable power connections with durable crimp contacts and high cycle performance.
Frequently Asked Questions
Where can I buy Weidmuller HDCHQ5FC?
You can click on the BUY or RFQ button to purchase HDCHQ5FC from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHQ5FC?
You can download the HDCHQ5FC datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHQ5FC?
Weidmuller
