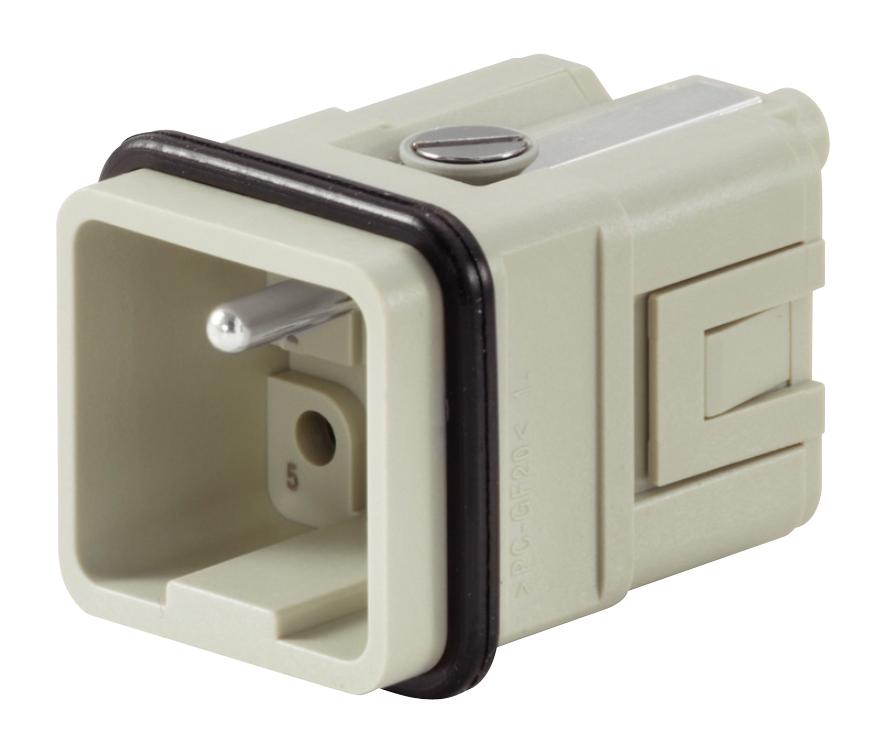

Weidmuller HDCHQ5MC Electrical Connector
The HDC HO.5 MC insert is a compact, high-quality electrical connector designed for efficient power distribution. It features a 5-pole configuration (+PE), rated for 16 A and 250 V, with UL/CSA certification for 600 V AC/DC. The connector uses crimp connection technology, ensuring reliable and secure wiring. Crafted from PC glass-fibre reinforced insulating material, it withstands temperatures from 40°C to 125°C. Its silver passivated surface and gold-plated contacts enhance conductivity and durability, making it suitable for industrial automation and electrical systems requiring robust, safe connections.
Weidmuller HDCHQ5MC Electrical Connector Specifications:
- Number of poles: 5 (+PE)
- Rated current: 16 A
- Rated voltage: 250 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Crimp connection
- Material: PC glass-fibre reinforced
- Insulation resistance: 10^9 Ω
- Surface finish: Silver passivated, gold-plated contacts
- Maximum temperature: 125°C
- Dimensions: Length 21mm, Width 21mm, Height 40mm
- Net weight: 149 g
- Environmental rating: Pollution severity 3
- Plugging cycles: 2500
- Rated impulse voltage: 6 kV
Buy the Weidmueller Series HDC HDC HO.5 MC: 5-Pole Electrical Connector
Enhance your electrical systems with the Weidmueller HDC HO.5 MC insert, a compact, durable, and reliable 5-pole connector rated for 16 A and 250 V. Featuring UL/CSA certification, it ensures safety and compliance. The connector uses secure crimp connections, has a robust PC glass-fibre reinforced body, and gold-plated contacts for excellent conductivity. Its temperature range from 40°C to 125°C makes it ideal for demanding industrial environments. Order online today for fast, trusted delivery of high-quality electrical components.
Buy Weidmueller HDC HO.5 MC now and experience unmatched reliability and performance in industrial power connections.
Frequently Asked Questions
Where can I buy Weidmuller HDCHQ5MC?
You can click on the BUY or RFQ button to purchase HDCHQ5MC from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHQ5MC?
You can download the HDCHQ5MC datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHQ5MC?
Weidmuller
