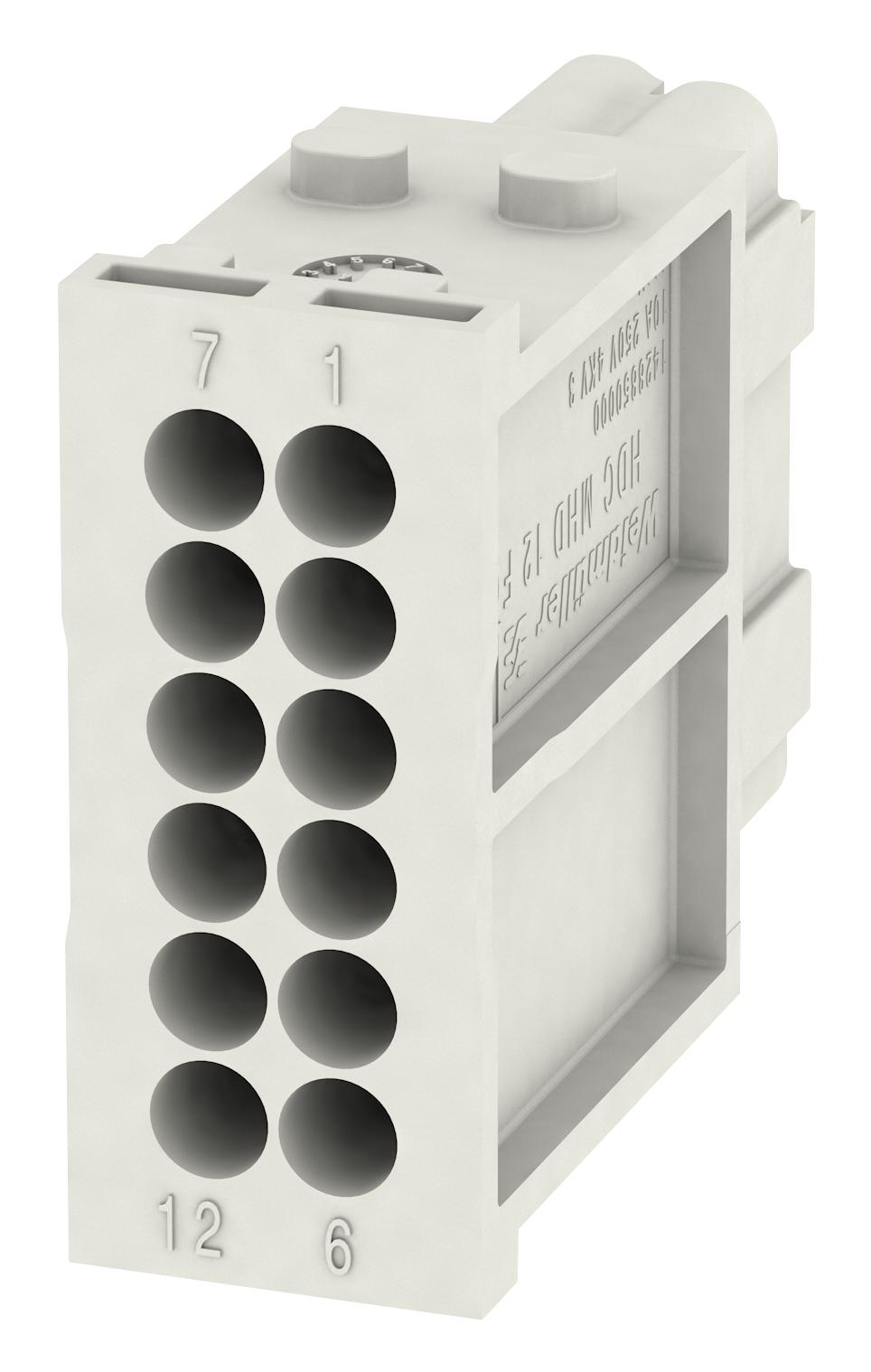

Weidmuller HDCMHD12FC Modular Connector
The HDC MHD 12 FC is a compact, flexible modular connector solution designed with four module sizes to save space and optimize design. Suitable for industrial applications, it offers reliable insulation with polycarbonate and glass fiber materials, supporting up to 500 plug cycles. Rated for 10A current and 250V, with a UL/CSA approval for 600V, these connectors feature screw and crimp connections, compatible with wires from 26 to 14 AWG. It withstands temperatures from 40°C to 125°C and is suited for harsh environments with pollution severity class 3.
Weidmuller HDCMHD12FC Modular Connector Specifications:
- Number of poles: 12
- Rated current: 10A
- Rated voltage: 250V (DIN EN 61984), 600V (UL/CSA)
- Temperature range: 40°C to 125°C
- Material: Polycarbonate with glass fiber reinforcement
- Flammability rating: UL 94 V0
- Insulation resistance: 1070 MΩ
- Plugging cycles: 500
- Pollution severity: 3
- Connection type: Screw and crimp
- Wire range: AWG 26 to 14
- Stripping length: 8mm
- Certification: UL/CSA approved, IEC, eClass 6.2, ETIM 6.0
- Dimensions and weight: unspecified
Buy the Weidmueller Series Modular Connector: HDC MHD 12 FC
Enhance your industrial connections with the Weidmueller HDC MHD 12 FC modular connector. Designed for durability and space efficiency, it supports 12 poles with a rated current of 10A and voltage of 250V. Suitable for harsh environments, it features UL/CSA approval for 600V, withstands temperatures from 40°C to 125°C, and supports up to 500 plug cycles. Easy to install via screw or crimp connection, this robust connector ensures safe, reliable performance in demanding applications.
Buy Weidmueller HDC MHD 12 FC now and experience reliable industrial connectivity with durable, space-saving modular design.
Frequently Asked Questions
Where can I buy Weidmuller HDCMHD12FC?
You can click on the BUY or RFQ button to purchase HDCMHD12FC from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCMHD12FC?
You can download the HDCMHD12FC datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCMHD12FC?
Weidmuller
