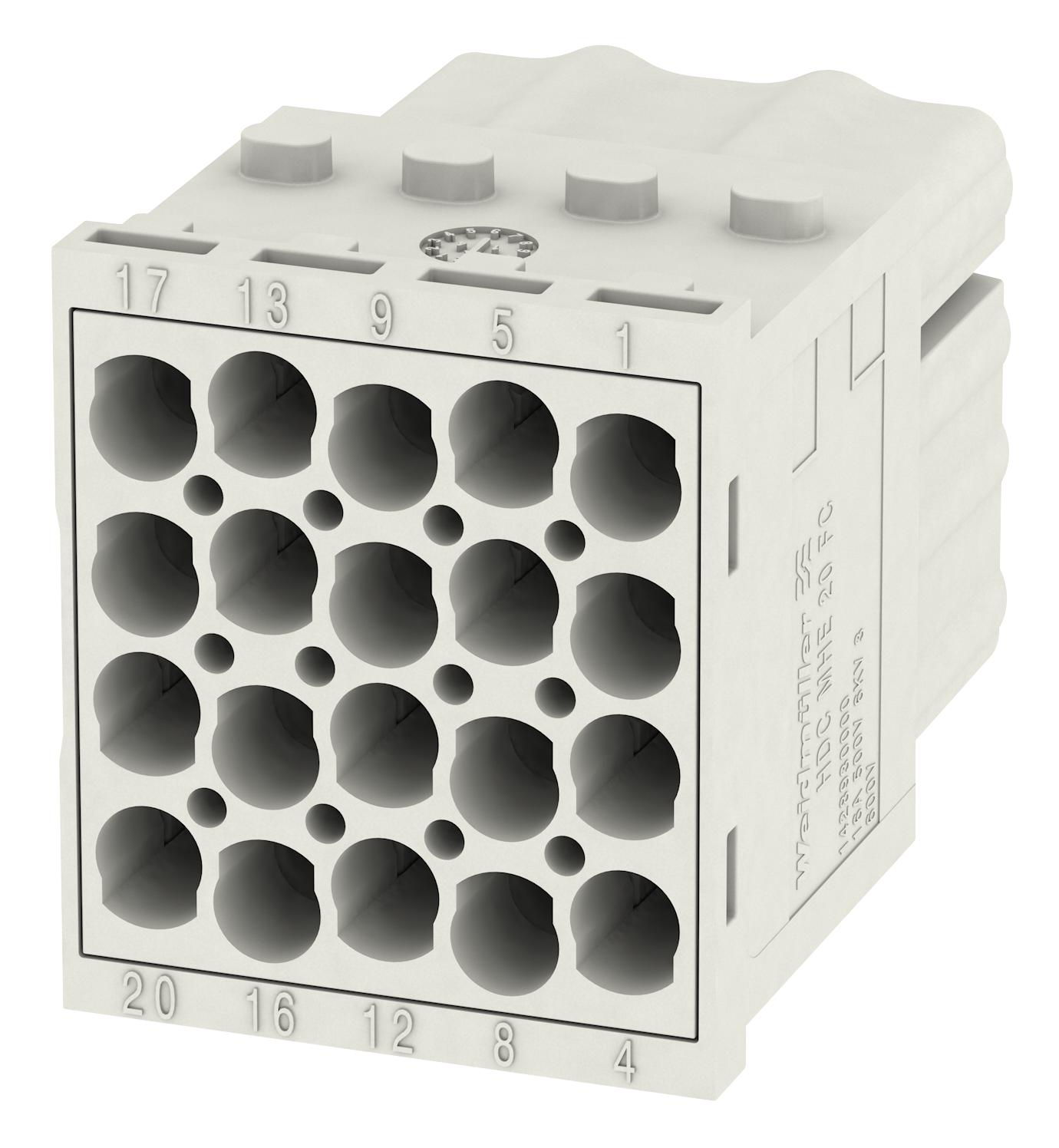

WEIDMULLER HDCMHE20FC Modular Connector System
The HDC MHE 20 FC is a modular, flexible connector system designed for efficient space utilization and ease of installation in industrial settings. It features 20 poles, a rated current of 16A, and a rated voltage of 600V, suitable for various electrical applications. The connector is made from polycarbonate and reinforced with fiberglass, ensuring durability and high insulation resistance. It supports up to 500 plugging cycles and has a temperature rating range of 40°C to 125°C. Its compact design and screw or crimp connection options make it ideal for reliable, high-performance wiring solutions.
WEIDMULLER HDCMHE20FC Modular Connector System Specifications:
- Number of Poles: 20
- Rated Current: 16A
- Rated Voltage: 600 V
- Rated Impulse Voltage: 6 kV
- Temperature Range: 40°C to 125°C
- Material: Polycarbonate, reinforced with fiberglass
- Insulation Resistance: 1070 MΩ
- Pollution Severity: 3
- Number of Plugging Cycles: 500
- Connection Type: Screw or crimp connection
- Wire Cross-Section Range: Min 0.5 mm², Max 4 mm²
- Flammability Rating: UL 94 V0
- Pollution Severity: Level 3
- Dimensions: Not specified in the data
- Certifications: UL, CSA approval
- Surge Voltage Category: UL
Buy the Weidmueller HDC MHE 20 FC – Reliable Modular Connectors for Industrial Applications
Purchase your Weidmueller HDC MHE 20 FC connector online today to benefit from its high-quality, durable polycarbonate construction, rated for 16A and 600V. Designed with versatility in mind, it offers easy assembly with screw or crimp connections, supports 500 plugging cycles, and operates efficiently within a temperature range of 40°C to 125°C. Its compact form is ideal for space-constrained industrial environments, ensuring safe, reliable electrical connections across various automation and control systems.
Order your Weidmueller HDC MHE 20 FC today and ensure reliable, space-saving wiring solutions for your industrial projects with durable and versatile connectivity.
