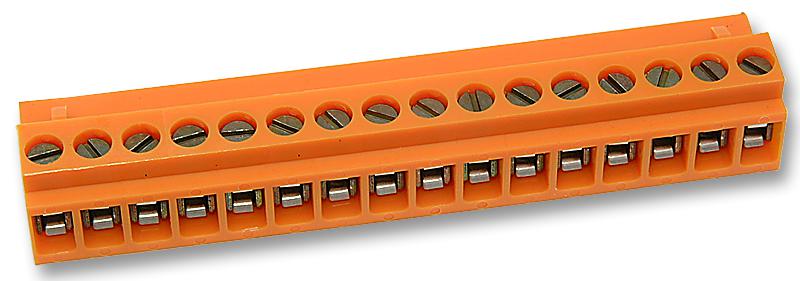

Weidmuller BLZ50811 female PCB connector
The female connector features a clamping-yoke screw for simple wire connection with a straight (180°) outlet direction, supporting wire ranges up to 3.3 mm². It is ideal for PCB applications, providing space for labelling and coding. This compact, insulated female plug has a robust design using copper alloy contacts, tinned contacts for corrosion resistance, and an orange PBT insulating material. Rated for 400 V/19 A, with high-quality UL, IEC, and CSA certifications, it ensures reliable performance in industrial wiring and automation systems.
Weidmuller BLZ50811 female PCB connector Specifications:
- Pitch: 5.08 mm (0.2 inches)
- Number of poles: 11
- Rated voltage: 400 V (IEC), 300 V (UL and CSA)
- Rated current: 19 A (IEC), 15 A (UL/CSA)
- Clamping range: 0.13 to 3.31 mm†
- Max wire cross-section: 2.5 mm² (AWG 12)
- Contact material: Copper alloy, tinned surface
- Insulating material: PBT, orange (RAL 2000)
- Temperature range: -50°C to 100°C
- Touch-safe protection: IP20
- Screw size: M2.5, tightening torque: 0.4–0.5 Nm
- Withdrawal force: 8 N per pole, push-in force: 10 N per pole
- Number of plugging cycles: 25
- Flammability rating: UL 94 V0
- Certification: UL, IEC, CSA compliant
Buy the Weidmuller Series BL/SL 5.08 Female Connector: BLZ50811
Purchase the Weidmuller BLZ50811 female PCB connector online today and ensure secure, reliable wire connections for your automation or industrial systems. Featuring a clamping-yoke screw for simple setup, rated for 400 V and 19 A, with a durable copper alloy contact surface, it guarantees high performance and safety. Its compact size and IP20 touch-safe design make it ideal for space-constrained applications. Order now for quick delivery and benefit from top-quality standards, proven durability, and comprehensive certifications designed to meet your industrial wiring needs.
Buy Weidmuller BLZ50811 now and experience unmatched reliability and performance in industrial wiring and PCB connections.
Frequently Asked Questions
Where can I buy Weidmuller BLZ50811?
You can click on the BUY or RFQ button to purchase BLZ50811 from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part BLZ50811?
You can download the BLZ50811 datasheet or visit the Weidmuller website for support.
Who is the manufacturer of BLZ50811?
Weidmuller
