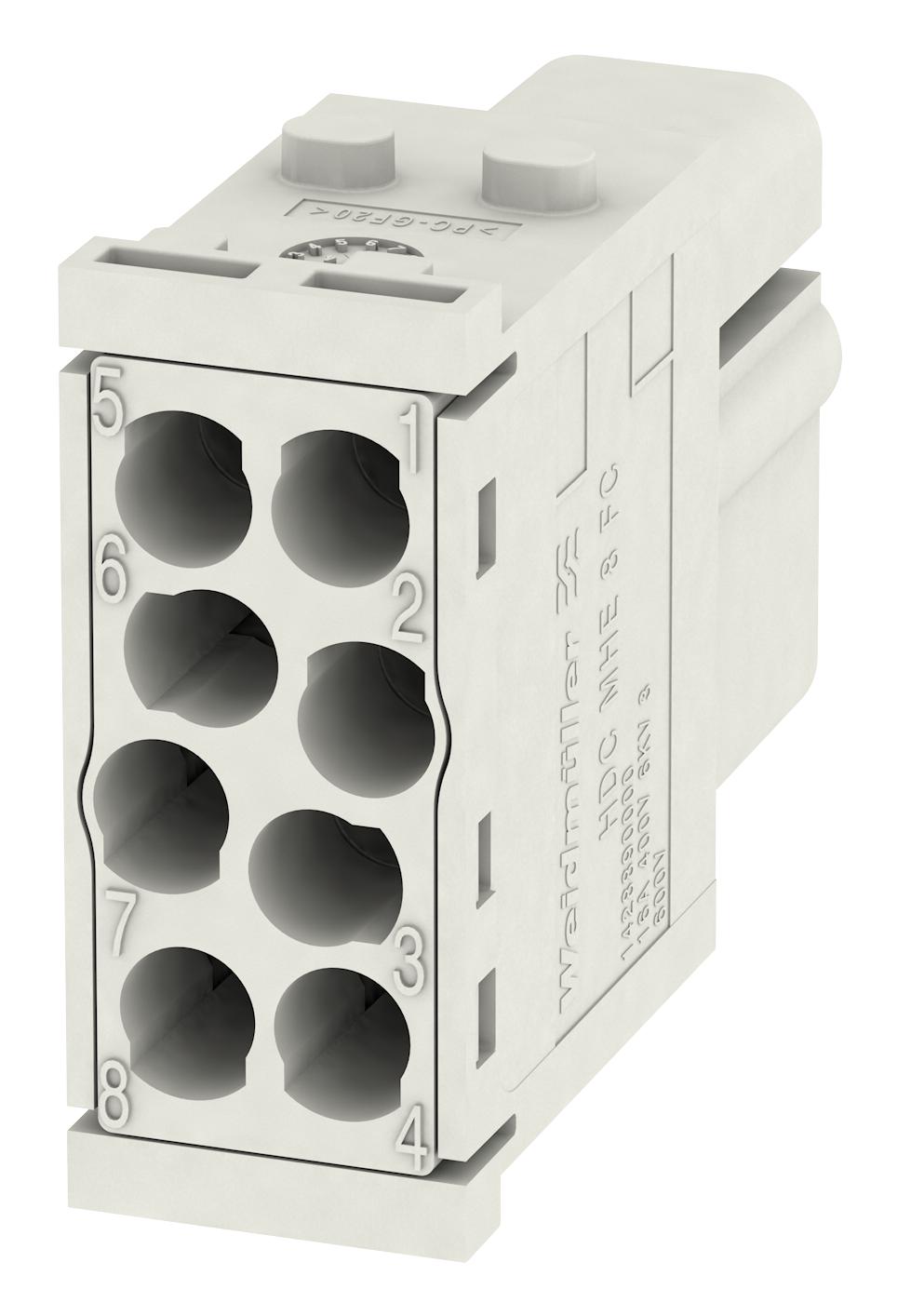

WEIDMULLER HDCMHE8FC Industrial Power Connector
The ModuPlug HDC MHE 8 FC is a flexible 8-pole connector designed for space-efficient industrial applications. Made from flame-retardant polycarbonate reinforced with glass fiber, it supports up to 500 plugging cycles. With a rated current of 16A and voltage of 400V (600V UL/CSA), it features screw and crimp connections compatible with AWG 20–12 wires. Its temperature range is -40°C to +125°C, ensuring reliable performance in demanding environments. Recognized for safety and durability, this connector meets UL V0 flammability standards and offers robust insulation resistance.
WEIDMULLER HDCMHE8FC Industrial Power Connector Specifications:
- Number of Poles: 8
- Rated Current: 16A
- Rated Voltage: 400 V (600 V UL/CSA)
- Rated Impulse Voltage: 6 kV
- Shell Material: Polycarbonate, glass fiber reinforced
- Flammability Rating: UL 94 V0
- Temperature Range: -40°C to +125°C
- Maximum Poling Cycles: 500
- Connection Type: Screw and crimp connections
- Wire Range: AWG 20–12
- Insulation Resistance: 1070 MΩ
- Pollution Severity: 3
- Surge Voltage Category: UL
- Certification: UL, CSA
- Plugging Slots: 1
- Dimensions & Weight: Net weight 12.235 kg, dimensions support modular space-efficient design
Buy the Weidmueller HDC MHE 8 FC – Reliable Industrial Connector for Power Distribution
Enhance your industrial power distribution with the Weidmueller HDC MHE 8 FC connector. Designed for durability, it features an 8-pole, space-saving modular design, supporting up to 16A and 400V. Made from flame-retardant polycarbonate reinforced with glass fiber, it withstands harsh environments with a wide temperature range from -40°C to +125°C. Certified by UL and CSA, this connector ensures safety, insulation resistance, and long-lasting performance for efficient electrical installations. Purchase online now for reliable connectivity in your industrial applications.
Get Weidmueller HDC MHE 8 FC today—built for precision, durability, and reliable electrical connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy WEIDMULLER HDCMHE8FC?
You can click on the BUY or RFQ button to purchase HDCMHE8FC from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part HDCMHE8FC?
You can download the HDCMHE8FC datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of HDCMHE8FC?
WEIDMULLER
