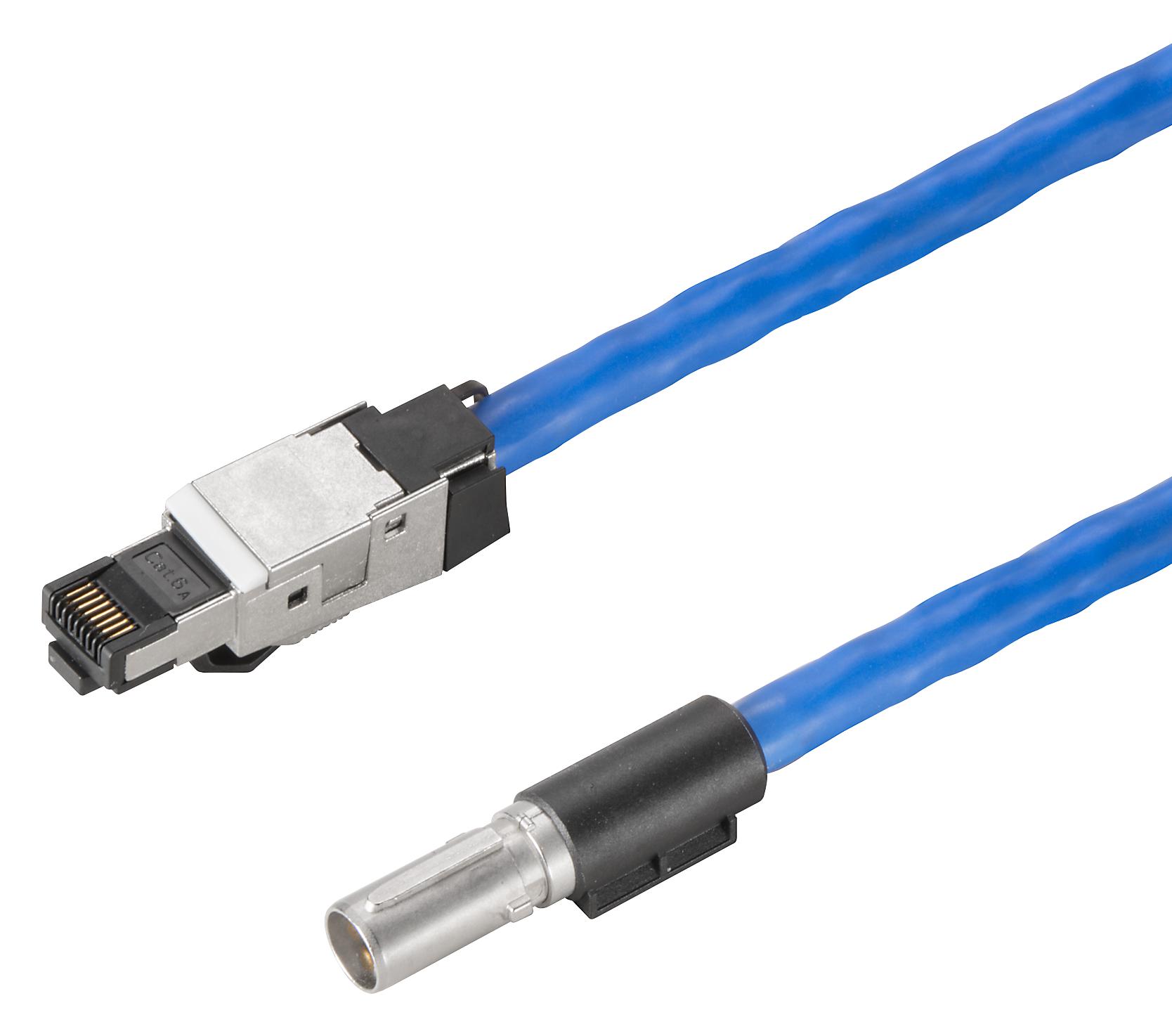

Weidmuller HDCXX6A01MMSRJ450100 High-Speed Ethernet Connector
The ModuPlug HDC XX6A01 MMSRJ45-0100 is a compact, high-performance RJ45 connector designed for Cat 6A cables. It features gold-plated contact surfaces for reliable data transmission at rates up to 10 GBit/s. The module supports different cable lengths and color coding options, ensuring easy installation and maintenance in industrial and network environments. With an operating temperature range of -30°C to 90°C, it offers durability and resistance to harsh conditions. Its precise engineering ensures secure connections for high-speed Ethernet applications, making it ideal for data centers, industrial automation, and telecommunications.
Weidmuller HDCXX6A01MMSRJ450100 High-Speed Ethernet Connector Specifications:
- Type: Male RJ45 connector
- Poles: 8
- Cable Compatibility: Cat. 6A, 24 AWG
- Cable Length: 1 meter
- Color Coding: White/Orange, Orange, White/Green, Green, White/Brown, Brown, White/Blue, Blue
- Insulation Resistance: >10^0 Ω
- Rated Voltage: 50V
- Rated Current: 0.5A
- Transmission Rate: 10 GBit/s
- Contact Material: Gold plated
- Plugging Cycles: 100
- Temperature Range: -30°C to 90°C
- Housing Material: Radox EM 104
- Shielded: Yes
- Dimensions: Dimensions conform to IEC 6 1076-2-109
- Compliance: RoHS conform
- Pollution Severity: Level 2
Buy the Weidmueller Series High-Speed Ethernet Connector: HDC XX6A01 MMSRJ45-0100
Enhance your network infrastructure with the Weidmueller HDC XX6A01 MMSRJ45-0100 Ethernet connector. Designed for high-speed data transfer up to 10 GBit/s, its gold-plated contacts ensure reliable connections even in harsh industrial environments. The compact, rugged design supports Cat 6A cables and withstands temperatures from -30°C to 90°C. Easy to install and maintain, this shielded RJ45 connector is perfect for industrial automation, data centers, and networking projects, providing durable and secure high-speed connectivity with a rated current of 0.5A and a rated voltage of 50V.
Buy Weidmueller HDC XX6A01 MMSRJ45-0100 now and experience unmatched reliability and performance in industrial Ethernet connections.
Frequently Asked Questions
Where can I buy Weidmuller HDCXX6A01MMSRJ450100?
You can click on the BUY or RFQ button to purchase HDCXX6A01MMSRJ450100 from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCXX6A01MMSRJ450100?
You can download the HDCXX6A01MMSRJ450100 datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCXX6A01MMSRJ450100?
Weidmuller
