Weidmuller VGM251MS68 Cable Gland

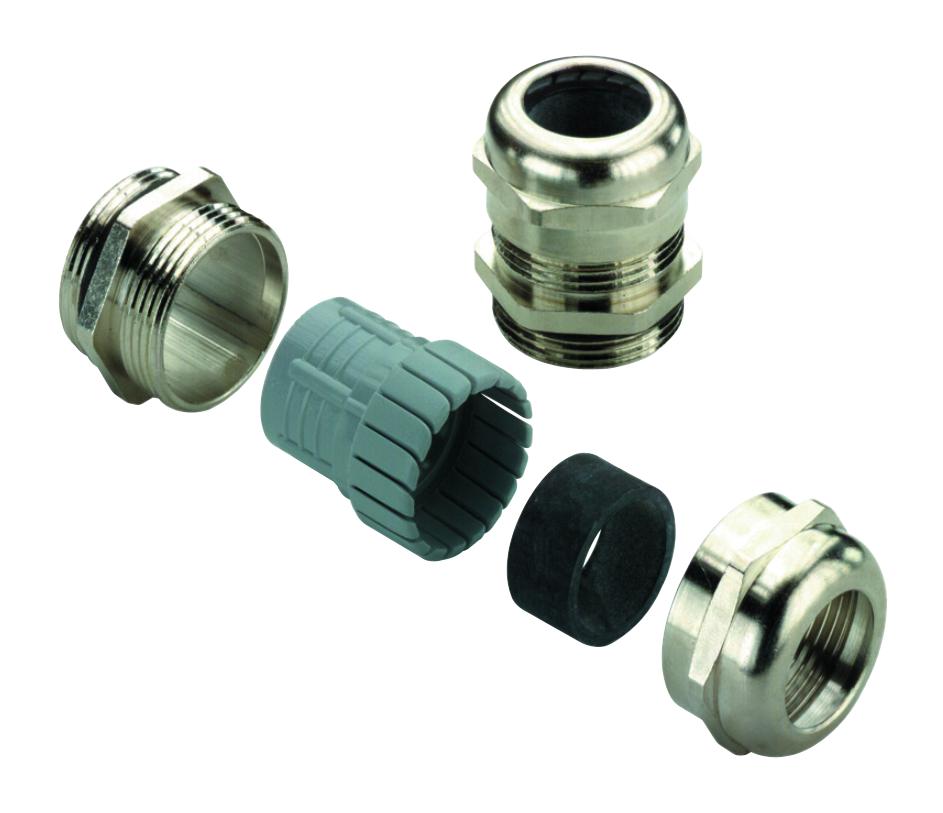

The Weidmueller VG M25-1/MS68 cable gland provides reliable cable sealing for outdoor and industrial applications with protection ratings up to IP68. Made of durable nickel-plated brass, it accommodates cable diameters from 11.00 to 17.00 mm, ensuring secure connection and safeguarding against dust and water ingress. The gland measures 40.5 mm in length with a 8 mm threaded section. Designed for maximum operating temperature of 100°C and minimum of -40°C, it features a sealing NBR insert and torque specifications for installation. Suitable for demanding environments requiring robust cable management.
Weidmuller VGM251MS68 Cable Gland Specifications:
- Material: Brass, nickel-plated
- Thread Size: M25, 8 mm length
- Cable Diameter Range: 11.00 - 17.00 mm
- Length: 40.5 mm (1.594 inches)
- Operating Temperature: -40°C to +100°C
- Protection Level: IP54, IP66, IP67, IP68 (5 bar, 30 min)
- Seal Insert: NBR
- Outer Cable Diameter: Min. 11 mm, Max. 17 mm
- Torque for Cap Nut: Min 10 Nm, Max 12 Nm
- Sealing: NBR seal for water and dust protection
- Dimensions: Length varies with cable size, thread diameter 25 mm
Buy the Buy Weidmueller Cable Gland Part Number VGM251MS68 Online
Order the Weidmueller VGM251MS68 cable gland online today for secure cable termination in demanding environments. This high-quality brass gland offers IP68 protection, ensuring dust and water ingress protection in outdoor and industrial applications. Its 8 mm threaded connection and cable diameter range of 11.00 to 17.00 mm make it versatile for various cable sizes. Easy to install with torque specifications up to 12 Nm, it provides a durable, reliable sealing solution valued by professionals and engineers for critical wiring setups. Experience quick delivery and seamless purchasing today.
Buy Weidmueller VGM251MS68 now and ensure reliable sealing for robust industrial and outdoor cabling.
Frequently Asked Questions
Where can I buy Weidmuller VGM251MS68?
You can click on the BUY or RFQ button to purchase VGM251MS68 from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part VGM251MS68?
You can download the VGM251MS68 datasheet or visit the Weidmuller website for support.
Who is the manufacturer of VGM251MS68?
Weidmuller
