WIELAND ELECTRIC 2131110530 Divisible Terminal Strip

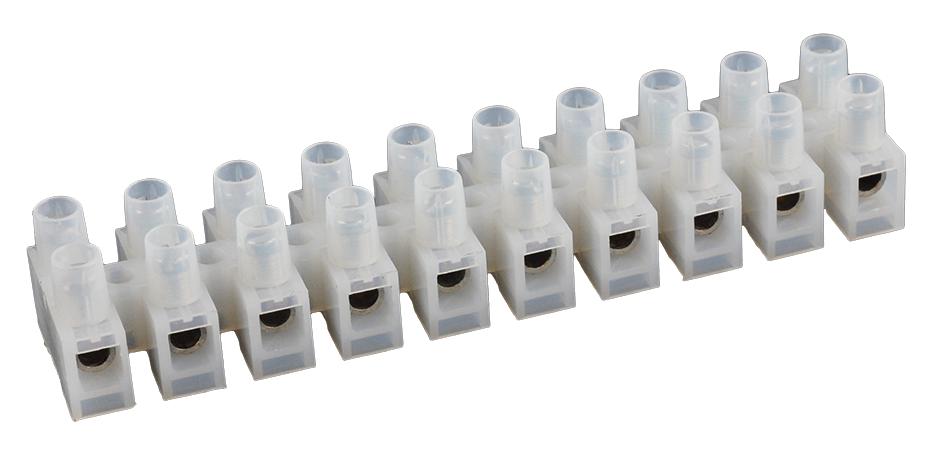

The Wieland Electric 21.311.1053.0 is a divisible terminal strip specifically engineered for appliance applications. These terminal strips are designed to provide a reliable and flexible connection solution in a variety of industrial settings. They are characterized by their ease of use, modular design, and ability to accommodate different wiring requirements. The strip is constructed to meet stringent safety standards, ensuring consistent performance and longevity. GW parts utilize a material with enhanced flame resistance, complying with DIN60335-1. Available with or without wire protection, these terminal strips offer versatility for diverse applications.
WIELAND ELECTRIC 2131110530 Divisible Terminal Strip Specifications:
- iec_voltage_rating: 400 V
- iec_current_rating: 17.5 A
- wire_size_range: 0.75 - 1.5 mm
- ul_voltage_rating: 250 V
- ul_current_rating: 20 A
- ul_wire_size_range: 20 -14 AWG
- factory_wiring_voltage: 600 V
- factory_wiring_current: 15 A
- factory_wiring_wire_size: 22 -16 AWG
- csa_voltage_rating: 300 V
- csa_current_rating: 10 A
- csa_wire_size_range: 22 -16 AWG
- wire_strip_length: 4.5 mm
- screw_size: M2.5
- pole_count_box_qty: Varies based on configuration (see datasheet)
- material_flame_resistance: GW parts have higher flame resistance (DIN60335-1)
