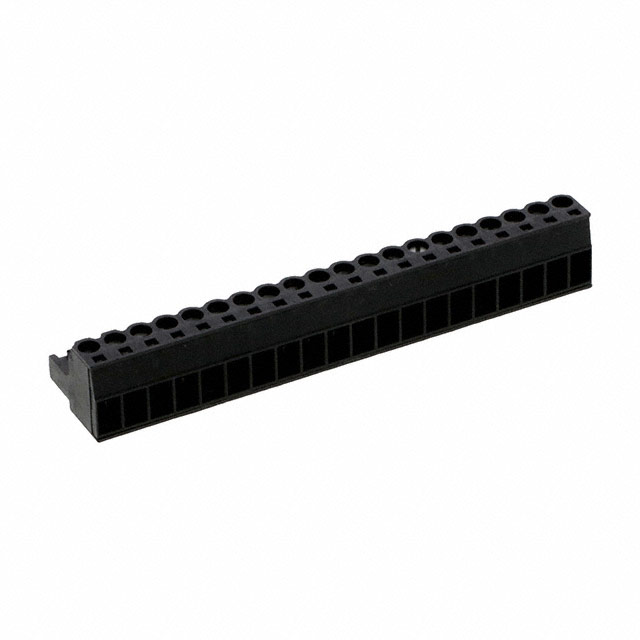

WIELAND ELECTRIC 2532010531 Pluggable Terminal Strip
The Wieland Electric 25.320.1053.1 pluggable terminal strip provides a dependable solution for connecting wires in a variety of industrial applications. Its modular design allows for flexible configuration and expansion, while captive screws and wire protection ensure safety and ease of use. Constructed with high-quality materials like polyamide and copper alloy, this terminal block delivers long-lasting performance and circuit protection. It is ideal for applications requiring secure and organized wiring in control cabinets, machinery, and automation systems.
WIELAND ELECTRIC 2532010531 Pluggable Terminal Strip Specifications:
- Type: 8113
- Spacing: 5mm / 5.08mm
- Rated Cross Section: 2.5 mm’
- Rated Voltage: 250V~, 300V
- UL Ratings: AWG No 22-12, 300V
- CSA Ratings: AWG No 22-12, 300 V
- Current Rating: 15A
- Wire Strip Length: 6 mm
- Drilling Hole Diameter: 1.4 mm
- Insulating Housing Material: Polyamide, flame resistant UL 94 V-0
- Clamping Screws Material: Copper alloy, nickel plated
- Solder Pins and Contact Springs Material: Tin plated bronze
- Temperature Rating: 100°C
Buy the 25.320.1053.1 WIELAND ELECTRIC Pluggable Terminal Strip | myMectronic
Purchase the Wieland Electric 25.320.1053.1 pluggable terminal strip securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC 2532010531?
You can click on the BUY or RFQ button to purchase 2532010531 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part 2532010531?
You can download the 2532010531 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of 2532010531?
WIELAND ELECTRIC
