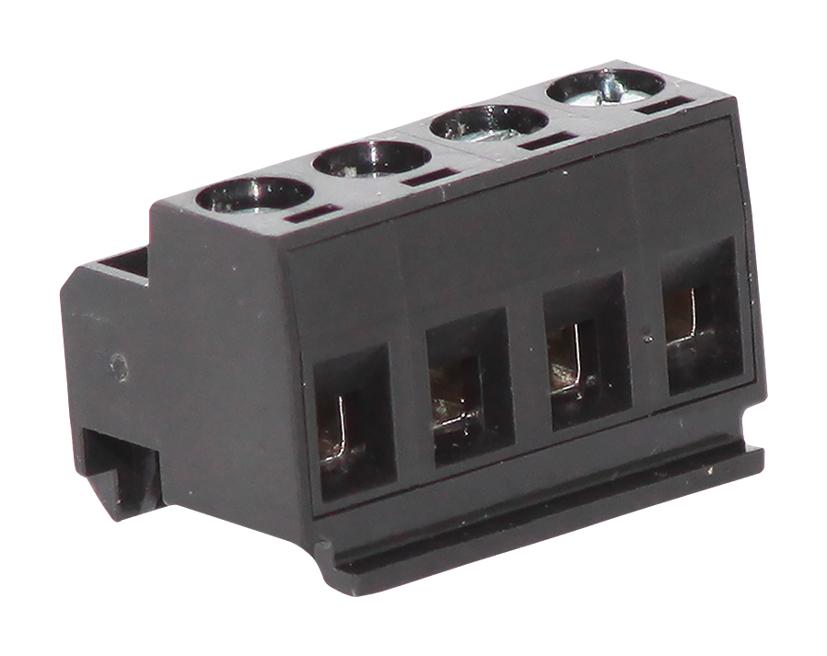

WIELAND ELECTRIC 2561323561 PCB Terminal
This reliable PCB screw terminal series 8142 features a pitch of 5.00 mm and is designed for industrial wiring applications. It incorporates a raising cage clamp ensuring secure connections with wire sizes from 20-14 AWG. Approved by IEC, UL, and CSA standards, it supports voltage ratings up to 300V and current ratings of 1.5A. The terminal's 6mm M3 screw size and two-part construction facilitate easy installation and maintenance. It is suitable for multiple pole configurations, with customizable markings and optional pole arrangements, making it ideal for automation and control panel wiring.
WIELAND ELECTRIC 2561323561 PCB Terminal Specifications:
- Pitch: 5.00 mm
- Series: 8142
- Wire Range: 20-14 AWG
- Wire Strip Length: not specified
- Screw Size: M3, 6 mm
- Pull-out Force: < 4.0 N/mPin
- Voltage Ratings: 300V (UL, CSA), 200V (IEC)
- Current Rating: 1.5A
- Approvals: IEC, UL, CSA
- Number of Poles: customizable, more poles available on request
- Construction: Two-part design with raising cage clamp
- Certification: UL Listed, CSA Certified
- Dimensions: Pitch 5.00 mm, screw size M3, length varies with model
Buy the Wieland 2561323561 – Reliable PCB Terminal for Industrial Applications
Enhance your control panel wiring with the reliable Wieland PCB Terminal designed for industrial applications. Featuring a 5.00 mm pitch and supporting wire sizes from 20 to 14 AWG, this terminal combines a robust cage clamp with easy installation. Certified by IEC, UL, and CSA standards, it ensures safety and compliance. Its M3 screw size and flexible pole options allow customization to meet specific project needs. Purchase online now for efficient, secure, and maintenance-friendly wiring solutions for your automation systems.
Order your Wieland Series 2561323561 high-quality PCB screw terminal today and secure your industrial wiring projects with dependable and easy-to-install components.
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC 2561323561?
You can click on the BUY or RFQ button to purchase 2561323561 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part 2561323561?
You can download the 2561323561 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of 2561323561?
WIELAND ELECTRIC
