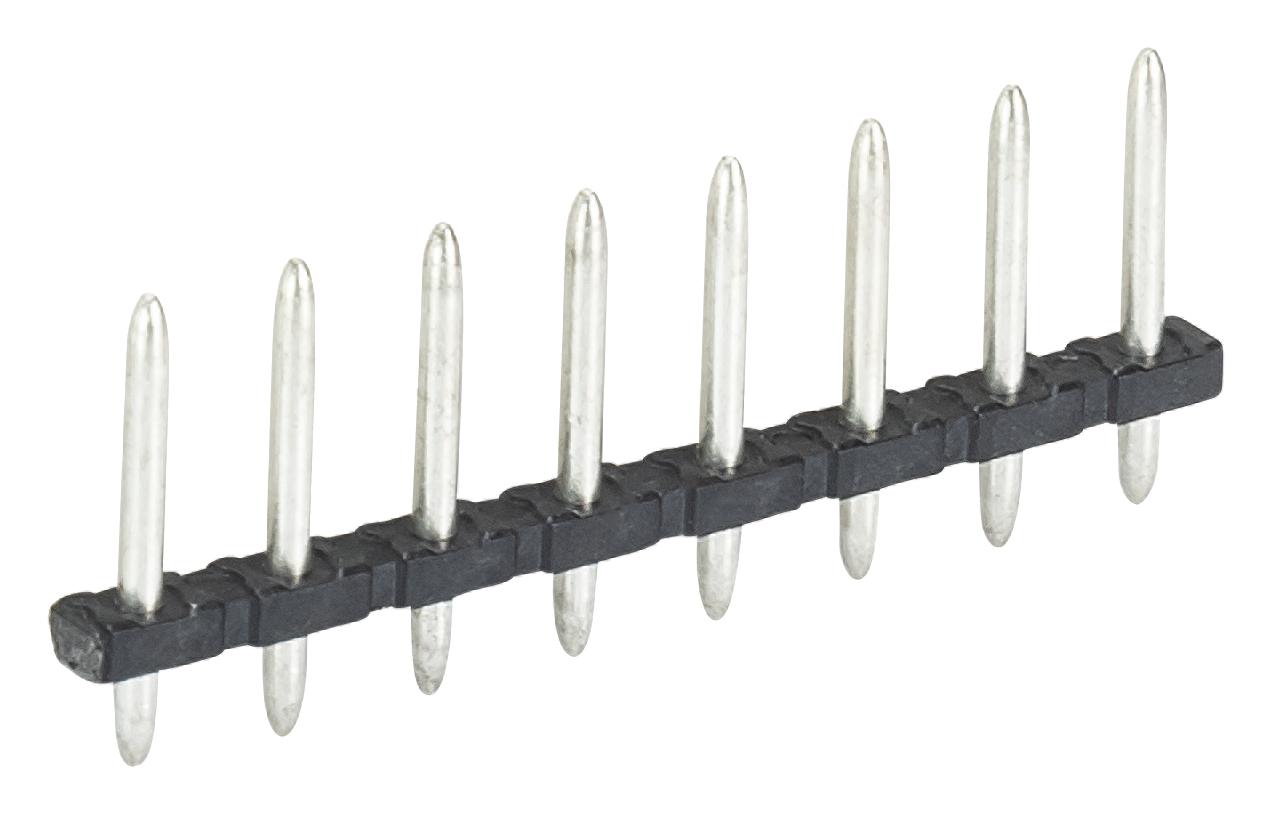

WIELAND ELECTRIC Z553002040 PCB Connector
The 8142 Z series PCB connector is designed for applications requiring a secure wire connection on one half of the housing, with the PCB mounted on a housing that snaps into the base plate. It is suitable for high-tech thermostats, access control stations, and electronic assemblies needing PCB mounting on wall plates. Features include a rising cage screw clamp wire termination system, high-temperature rated pin headers compatible with reflow and wave soldering, and stacking capability for various pin counts. It is UL and CSA approved, offering reliable, high-quality performance in electronic device assembly.
WIELAND ELECTRIC Z553002040 PCB Connector Specifications:
- Number of poles: 2
- Pitch: 5 mm
- Height: 14.5 mm
- Length: 9.8 mm
- Depth: 2.7 mm
- Material contact surface: CuZn
- Insulation material: Thermoplastic
- Rated current: 8A
- Voltage UL: 300 V
- Voltage CSA: 300 V
- Overvoltage Category: 1000 V
- Rated impulse voltage: 4kV
- Soldering process: THR (reflow and wave soldering)
- Color options: Black, grey, green
- Application: PCB mounting, high-temperature environments, electronic assemblies
- Certification: UL Listed, CSA Certified
Buy the Wieland Series 8142 Z PCB Connector: Z553002040
Purchase the Wieland PCB connector online for secure, high-quality wire-to-board connections. Designed with a rising cage screw clamp and compatible with reflow soldering, it offers dependable performance in electronic devices. Its compact size, black or grey color options, and UL/CSA certification make it ideal for thermostats, access control, and wall-mounted PCB applications. Simplify your assembly process and ensure long-lasting durability with this versatile connector, available for immediate online purchase.
Get Wieland 8142 Z PCB connector today—built for secure connections, high-temperature performance, and reliable electronic assembly.
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC Z553002040?
You can click on the BUY or RFQ button to purchase Z553002040 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part Z553002040?
You can download the Z553002040 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of Z553002040?
WIELAND ELECTRIC
