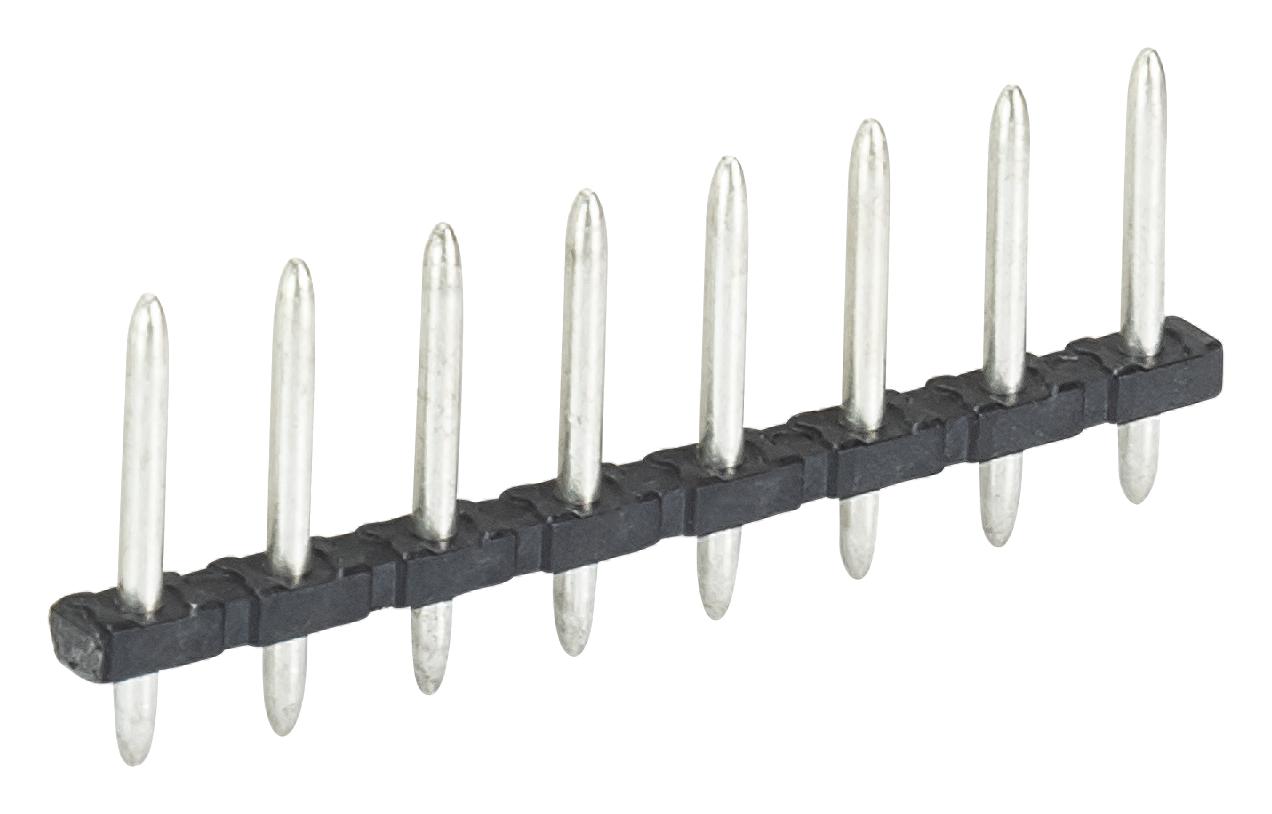

WIELAND ELECTRIC Z553004040 PCB Terminal Connector
The 8142 Z series PCB connector is ideal for secure wire connections in electronic assemblies such as thermostats and access control stations. It features a rising cage screw clamp wire termination system, high-temperature rated pin-strip headers suitable for reflow processes, and stackability for various pin configurations. Designed for applications needing reliable PCB mounting on wall plates, it complies with UL and CSA standards. The connector supports a 5 mm pitch, has 4 poles, and can handle rated currents up to 8A, with a voltage capacity of 300 V. Its thermoplastic insulation and black color make it durable and suitable for industrial environments, offering a compact 14.5mm height, 19.8mm length, and 2.7mm depth.
WIELAND ELECTRIC Z553004040 PCB Terminal Connector Specifications:
- Number of poles: 4
- Pitch: 5 mm
- Rated current: 8A
- Voltage: 300 V
- Overvoltage category: | 1000 V
- Material: Thermoplastic insulation, contact base Cuzn
- Height: 14.5 mm
- Length: 19.8 mm
- Depth: 2.7 mm
- Soldering process: THR
- Color: Black, grey, green options available
- Max. cross section: 2.5 mm²
- Stackable, suitable for high-tech assemblies
- UL and CSA approved
- Rated impulse voltage: 4akv
- Operating temperature and environmental ratings suitable for industrial use
Buy the Luland 8142 S / 4 – Reliable PCB Connector for Industrial Applications
Purchase the Luland PCB Terminal Connector online today for reliable, secure wiring solutions in industrial and electronic applications. Its high-temperature rated pin headers, cage clamp options, and stackability ensure versatile use in high-tech equipment. Designed for applications requiring UL and CSA compliance, this connector supports up to 8A and 300V, with a 5 mm pitch and four poles for flexible configuration. Its robust thermoplastic construction and simple mounting process make it ideal for wall plates, thermostats, and electronic control stations. Ensure your assembly's safety and durability by ordering now.
Get Luland 8142 S / 4 today—built for secure, high-temperature electrical connections in industrial environments.
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC Z553004040?
You can click on the BUY or RFQ button to purchase Z553004040 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part Z553004040?
You can download the Z553004040 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of Z553004040?
WIELAND ELECTRIC
