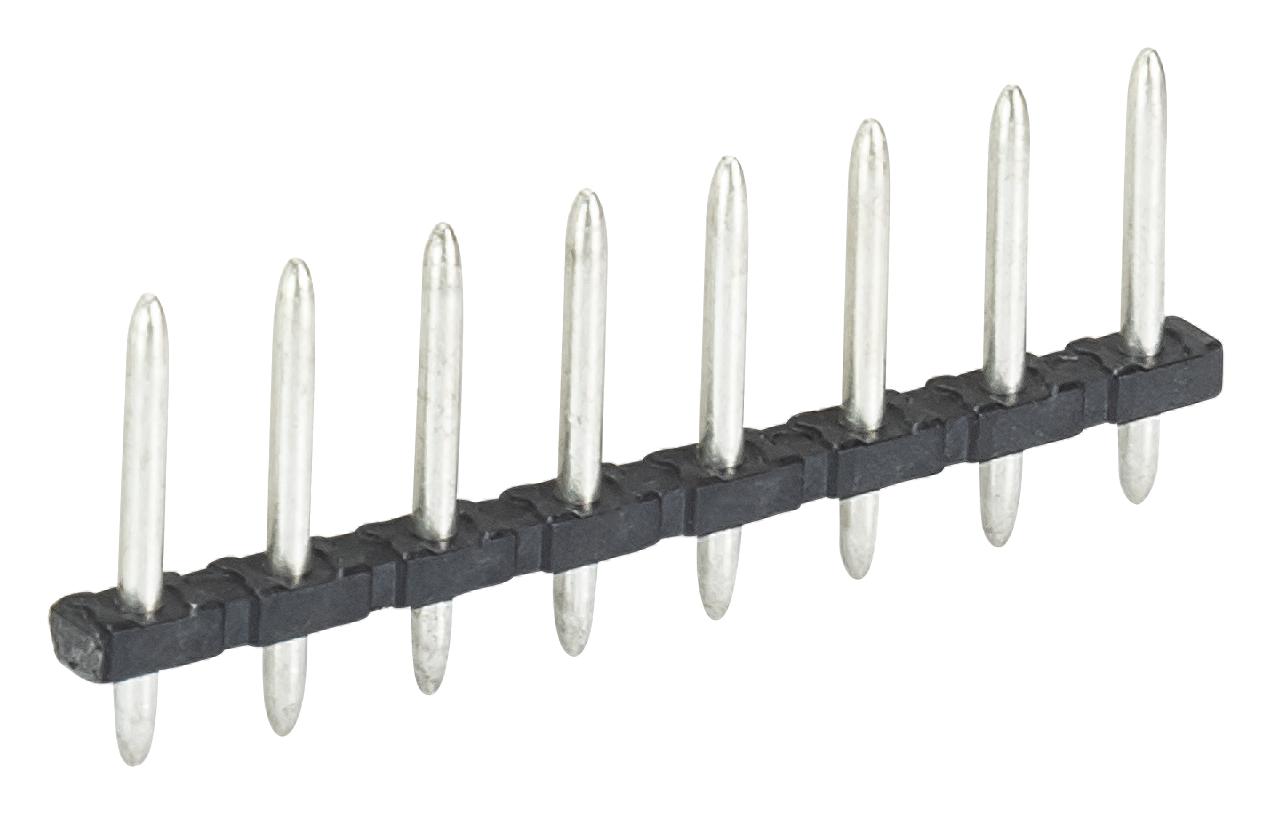

WIELAND ELECTRIC Z553010040 PCB Connector
The 8142 Z series PCB connector is designed for easy wiring and secure PCB mounting, featuring a rising cage screw clamp system and high-temperature rated headers. It supports applications like thermostats and access control stations, with UL and CSA approval for safety. Compatible with various pin counts and suitable for both reflow and wave soldering, this connector provides reliable electrical connections in electronic assemblies. Its compact design with 10 poles and 5 mm pitch makes it ideal for industrial and automation applications, ensuring durability and compliance with industry standards.
WIELAND ELECTRIC Z553010040 PCB Connector Specifications:
- Number of poles: 10
- Pitch: 5 mm
- Color options: grey, black, green
- Height: 14.5 mm
- Length: 49.8 mm
- Depth: 2.7 mm
- Rated current: 15A
- Rated voltage UL: 1000 V
- Current CSA: 15A
- Overvoltage Category: II
- Rated impulse voltage: 4kV
- Material contact base: Cuzn
- Material: Thermoplastic
- Soldering process: reflow and wave soldering
- Packaging: carton
- Insulation material: thermoplastic
- Mating direction: 180°
- Certification: UL Listed, CSA Certified
Buy the Wieland Z5.530.1004.0 – Reliable PCB Connectors for Industrial Applications
Order the Wieland PCB connector online today for seamless integration into your electronic projects. Featuring a rising cage screw clamp system, UL and CSA approval, and compatibility with reflow and wave soldering, this 10-pole connector ensures secure and reliable connections. Its compact design with a 5 mm pitch and versatile color options makes it suitable for industrial automation, thermostats, access control, and electronic devices. Purchase now to benefit from fast delivery, industry-standard safety, and high-quality construction.
Buy Wieland Z5.530.1004.0 now and experience unmatched reliability and performance in your electronic assemblies with safe, durable PCB connectors.
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC Z553010040?
You can click on the BUY or RFQ button to purchase Z553010040 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part Z553010040?
You can download the Z553010040 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of Z553010040?
WIELAND ELECTRIC
