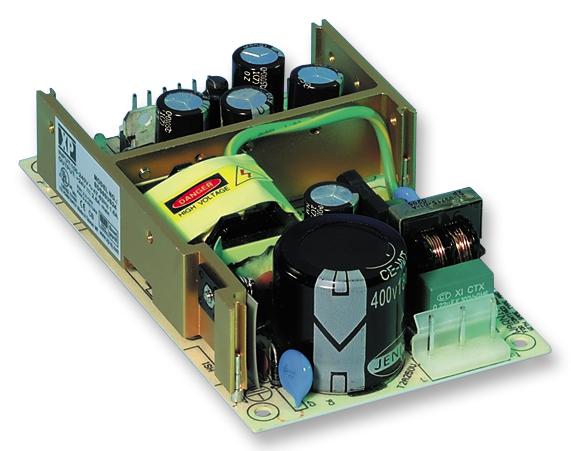

XP POWER SDS60UD01 industrial power supply
The SDS Series power supply offers reliable 60-watt output with efficiency up to 80%, operating from 90-264 VAC or 120-370 VDC input. Designed for industrial applications, it features multiple outputs from 3.3 V to 48 V, with robust protection including internal fuse, overvoltage, overload, and short circuit protections. Its compact 3x5-inch package fits 1U rack mounting, with convection cooling and a 190,000-hour MTBF, making it ideal for demanding automation and control systems requiring stable, regulated power.
XP POWER SDS60UD01 industrial power supply Specifications:
- Input Voltage: 90-264 VAC / 120-370 VDC
- Efficiency: 80% typical at 230 VAC full load
- Input Frequency: 47-63 Hz
- Isolation: 3000 VAC input to output
- Input Current: 1.6 A max at 115 VAC, 1.0 A max at 230 VAC
- Switching Frequency: 60 kHz typical
- Power Density: 3.5 W/in³
- MTBF: 190,000 hours typical
- Output Operating Temperature: 0 °C to +70 °C, derates linearly
- Output Power Protection: Overvoltage 112-132%, Overload 110-150% of nominal
- Safety Certifications: EN60950-1, UL60950-1, CSA60950-1
- Dimensions: 3” x 5” with optional covers available, weight approximately 0.52 lbs
- Cooling: Convection-cooled
- EMC & Safety Compliance: EN55022 Level B, EN61000-3-2/3, Level A
- Protection Features: Fuse, overvoltage, overload, short circuit, and overtemperature protections
Buy the Industrial Power Supply 60W – Reliable SDS Series for Industrial Applications
Purchase the SDS Series 60W industrial power supply online today and ensure your automation and control systems operate with stable, reliable power. Featuring multiple output voltages from 3.3 V to 48 V, high efficiency, and comprehensive protections, this compact unit is perfect for 1U rack applications. Its convection cooling, UL and CE safety certifications, and MTBF of 190,000 hours make it ideal for challenging industrial environments. Order now and upgrade your project’s power reliability with ease and confidence.
Order your SDS Series 60W power supply today and enhance your industrial systems with dependable, efficient power solutions tailored for demanding environments.
