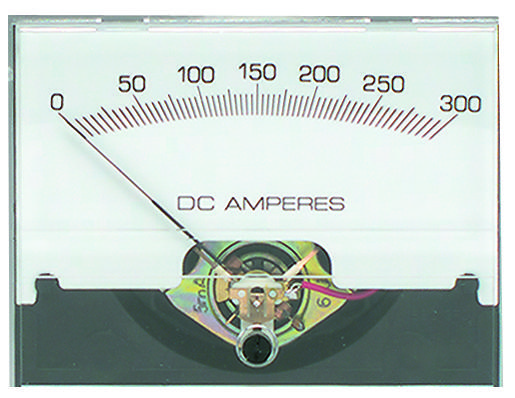

YOKOGAWA 260400FAFA Analog Panel Meter
The YOKOGAWA 260-400-FAFA is a versatile analog panel meter suitable for a wide range of industrial applications, including power monitoring, process control, and equipment testing. It provides accurate measurements of DC and AC voltage and current, with options for various scales and configurations. The meter's robust design ensures reliable performance in demanding environments, while its clear scale and pointer facilitate easy readability. It meets ANSI Specifications C-39.1 and offers overload protection for both voltmeters and ammeters, ensuring longevity and minimizing maintenance.
YOKOGAWA 260400FAFA Analog Panel Meter Specifications:
- Accuracy: ±2% of full-scale AC rectifier type; ±3% of full scale (with 60 Hz sine wave at 25º C). Expanded-scale voltmeters: ±.5% of full scale value.
- ANSI Specification: All meters meet ANSI Specifications C-39.1
- Overload: Voltmeters (AC and DC) - 50% momentary, 20% sustained. Ammeters (AC and DC) momentary; 10 times the rated current for 10 consecutive intervals of .5 second with a 1 minute interval between successive applications; sustained: 20% for six hours.
- Scale Data: 90 degree rotation
- Insulation Level: All meters (except 1[1] ⁄2”), 2600 Vrms Hi-pot, 1[1] ⁄2”-1500 Vrms Hi-pot.
- Burden Data: AC ammeter-5 amps, 0.5 va, Max. 0.5 power-factor lagging @ 60 Hz. AC voltmeter - unity power factor.
- Response Time: 3 seconds (max.) for 2[1] ⁄2”, 3[1] ⁄2”, 4[1] ⁄2” size for microammeters; 2 seconds (max.) for all other DC ratings, and 2.5 seconds (max) for AC ratings.
- Overshoot: Maximum of 40% overshoot.
