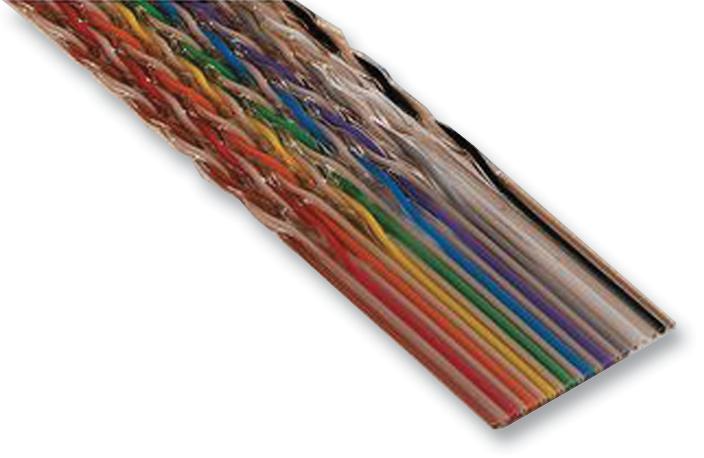

3M 170014100 Flat Data Cable
This twisted pair flat cable features 28 AWG stranded copper conductors with a PVC insulation, designed for reliable signal transmission in industrial, automation, communication, and control applications. It offers excellent flexibility, with ten color-coded conductors for easy identification, and features a twist and flat repeat length adjustable from 8.5 inches to 48 inches for versatile wiring setups. Suitable for mass termination to IDC connectors, this cable provides reduced crosstalk, high insulation resistance, and compliance with RoHS standards. Ideal for networking and electronic system interconnections, it ensures durability and safety in various environments.
3M 170014100 Flat Data Cable Specifications:
- Insulation Material: Polyvinyl Chloride (PVC)
- Conductors: 28 AWG, 7x 36 AWG tinned stranded copper
- Voltage Rating: USA: 300V, Canada: 150V, EU: <50V
- Insulation Resistance: > 1 x 10^9 Ω/10 ft (3m)
- Characteristic Impedance: 101 Ω unbalanced, 122 Ω balanced
- Capacitance: 15.9 pF/ft (52.2 pF/m) unbalanced, 13.3 pF/ft (43.6 pF/m) balanced
- Inductance: 0.16 pH/ft (0.53 wH/m) unbalanced, 0.20 pH/ft (0.66 wH/m) balanced
- Propagation Delay: 1.61 ns/ft (5.28 ns/m) unbalanced, 1.63 ns/ft (5.35 ns/m) balanced
- Temperature Rating: -20°C to +105°C (USA), -20°C to +80°C (Canada)
- Flammability Rating: VW-1 (USA), FT1 (Canada)
- RoHS Compliant: Yes
- Physical Dimensions: Diameter 0.050 inch (1.27 mm); Length options vary by order; the cable features a twist-flat repeat length from 8.5 inches to 48 inches
- Color coding: 10 colors including brown/tan, red/tan, orange/tan, yellow/tan, green/tan, clear, blue/tan, violet/tan, gray/tan, white/tan
Buy the 3M 170014100 – Reliable Flat Data Cable for Industrial Applications
Order the 3M Flat Data Cable today to enhance your electronic and industrial wiring projects. This flexible twisted pair cable features color coding for easy identification, adjustable twist and flat repeat for versatile installation, and is compatible with IDC connectors. Made of durable PVC insulation with 28 AWG stranded copper conductors, it ensures reliable performance in various environments. Perfect for networking, automation, and control systems, it offers high insulation resistance, compliance with RoHS standards, and enhanced durability to meet demanding industrial needs. Purchase online now for quick delivery and excellent performance.
Buy 3M 170014100 now and experience unmatched flexibility and high-quality signal integrity for your industrial wiring needs.
Frequently Asked Questions
Where can I buy 3M 170014100?
You can click on the BUY or RFQ button to purchase 170014100 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 170014100?
You can download the 170014100 datasheet or visit the 3M website for support.
Who is the manufacturer of 170014100?
3M
