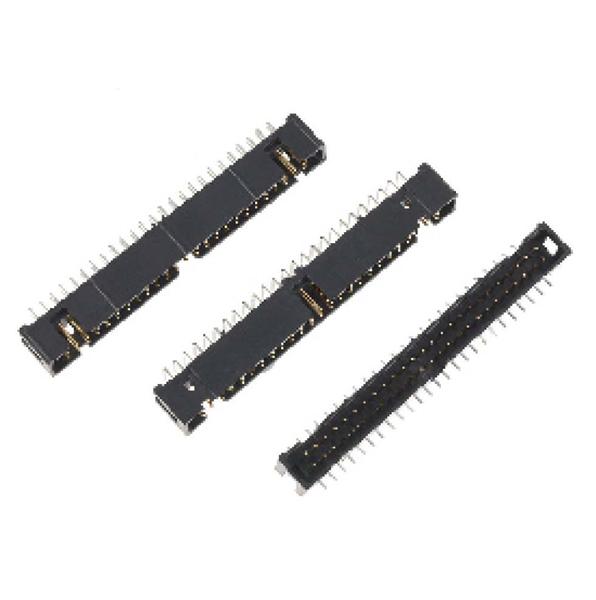

3M 25206003UB 2500 Series Low Profile Connector
This is a 0.100 inch low-profile, surface-mount (SMT) straight and right-angle through-hole connector from the 2500 Series. Suitable for PCB connections requiring compact profile and reliable electrical contact.
3M 25206003UB 2500 Series Low Profile Connector Specifications:
- Material: Glass Filled Polyester (PBT), High Temperature Option: PCT
- Flammability: UL 94V-0
- Color: Gray (PBT) or Black (PCT)
- Contact Material: Copper Alloy
- Plating: Underplating: 100 py” [2.54 um] Nickel - Overall, Gold (see ordering info), Tin Lead or Matte Tin solder tails
- Current Rating: 5.00 A, 3.00 A, 1.75 A depending on contact configuration
- Insulation Resistance: >1 x 10’ Q at 500 V
- Withstanding Voltage: 1000 V at Sea Level
- Temperature Rating: -55°C to +105°C
- Process Rating: Up to 260°C for high-temperature insulator, 191°C for PBT
- Moisture Sensitivity Level: 1 (per J-STD-020C)
Buy the 3M Series 2500 Connector: TS-0770-L
Order the 3M TS-0770-L series connector online today for high-performance PCB connections. This low-profile, surface-mount and through-hole connector offers excellent electrical contact reliability, compact dimensions, and high-temperature insulator options. Made from durable glass-filled polyester with gold and tin-lead plating, it supports currents up to 5A. Ideal for applications demanding tight spaces, vibration resistance, and reflow soldering techniques, ensuring long-lasting, secure connections in various electronic assemblies.
Get 3M TS-0770-L high-temperature, reliable connector today—perfect for SMT and through-hole PCB connections requiring durability and compact design.
