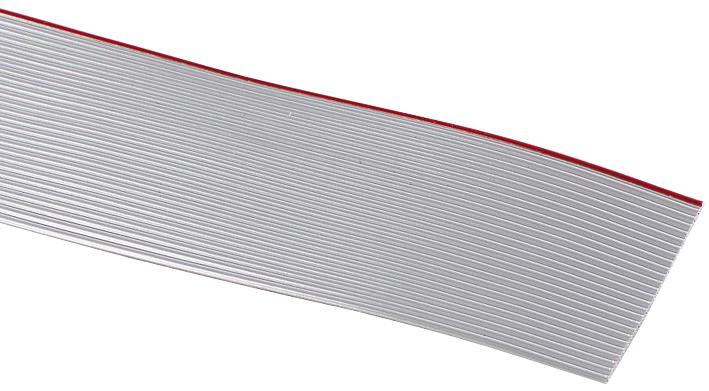

3M 336564 Flat Cable
The 3M™ Round Conductor Flat Cable in the 3365 Series features 28 AWG stranded copper conductors with PVC insulation, ideal for broad-line IDC connector termination. Its flexibility, zippable design for branching, and availability in gray or black ensure reliable signal transmission in various electronic applications. With a voltage rating of 300V and environmental resistance from -20°C to +105°C, this cable offers excellent electrical performance and durability. Suitable for interconnects in diverse industrial and electronic systems, ensuring easy installation and long-term stability.
3M 336564 Flat Cable Specifications:
- Conductor: 28 AWG, 7 x 36 stranded copper, tin-plated
- Insulation Material: Polyvinyl Chloride (PVC)
- Color Options: Gray, Black
- Voltage Rating: 300V
- Temperature Range: -20°C to +105°C
- Insulation Resistance: > 1 x 10^10 ohms per 10 ft
- Flammability Rating: VW-1 (USA), FT1 (Canada)
- Impedance: Unbalanced 102Ω, Balanced 1729Ω
- Capacitance: 14.47 pF/ft (47.5 pF/m), 8.14 pF/ft (26.7 pF/m)
- Inductance: 0.15 μH/ft (0.49 μH/m), 0.24 μH/ft (0.79 μH/m)
- Propagation Delay: 1.47 ns/ft (4.86 ns/m) unbalanced, 1.4 ns/ft (4.59 ns/m) balanced
- Velocity of Propagation: 69% (unbalanced), 73% (balanced)
Buy the 3M Series 3365 Flat Cable: 28 AWG Stranded PVC - 336564
Purchase the 3M flat cable in the 3365 series online today for reliable, flexible, and high-quality interconnect solutions. Featuring 28 AWG stranded copper conductors with PVC insulation, it’s ideal for broad-line IDC connectors. Available in gray or black, rated for 300V, and functioning from -20°C to +105°C, this cable ensures excellent electrical performance, durability, and ease of installation. Whether for industrial or electronic systems, this flat cable provides long-term stability and dependable signal transmission for your projects.
Get 3M 336564 today—built for flexibility and long-lasting durability in electronic wiring and interconnect solutions.
