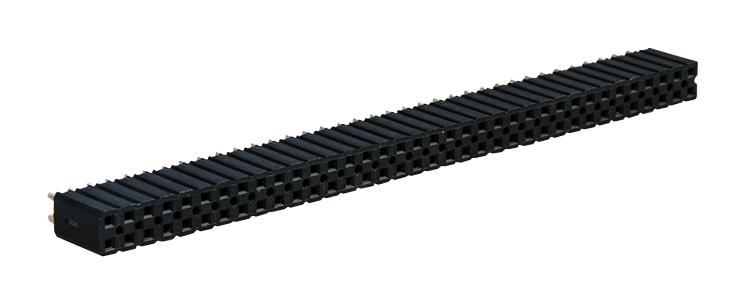

3M 9299750120 Pin Header
The 3M™ Pin Strip Header Series 929 includes single and dual-row options with .100 inch (.235/.318 inch mating length), available in straight and right-angle configurations with solder tails. Made from high-temperature PCT plastic or glass-filled polyester, these headers feature copper alloy contacts with nickel underplating, and optional plating in gold, matte tin, or tin-lead. They support currents up to 2.5A, withstand voltages of 1500V, and resist moisture from -40°C to +105°C, suitable for wave or IR soldering with high reliability and chemical compliance.
3M 9299750120 Pin Header Specifications:
- Material: Glass Filled Polyester (PBT) or High Temperature (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Gold, Matte Tin, Tin-Lead options
- Underplating: Nickel 50 yw" [1.27 um]
- Current Rating: 2.5A
- Insulation Resistance: >5x 10^9Ω at 500V
- Withstanding Voltage: 1500V AC at Sea Level
- Environmental Temperature Range: -40°C to +105°C
- Process Rating: 260°C (PCT only), max insulator temperature 191°C during wave soldering
- Moisture Sensitivity Level: Level 1
Buy the 3M Series 929 Pin Strip Header: 9299750120
Enhance your electronic designs with high-quality 3M Series 929 pin headers. These headers feature a high-temperature plastic body, reliable copper alloy contacts, and various plating options like gold, tin, or tin-lead. Designed for wave or IR soldering, supporting currents up to 2.5A and voltage withstand of 1500V, they operate efficiently from -40°C to +105°C. Perfect for creating robust, stackable connections in professional electronic assemblies, ensuring long-lasting durability and compliance with international standards.
Buy 3M Series 929 pin headers with solder tails now and experience unmatched reliability and performance in your electronic connections.
Frequently Asked Questions
Where can I buy 3M 9299750120?
You can click on the BUY or RFQ button to purchase 9299750120 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299750120?
You can download the 9299750120 datasheet or visit the 3M website for support.
Who is the manufacturer of 9299750120?
3M
