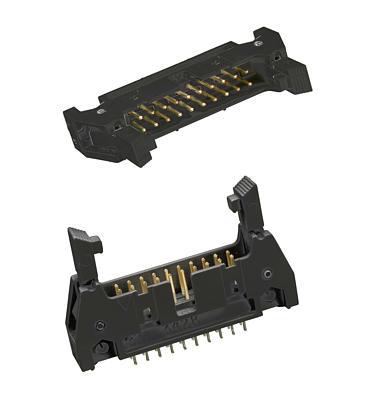

3M 34326003 Four-Wall Connector
The 3M Four-Wall Header is a versatile electrical connector component featuring a .100 inch latch and ejector, available in both straight and right angle configurations. Made from durable glass filled polyester insulators with options for high-temperature versions, it accommodates various solder tail configurations and mounting hardware, suitable for secure and reliable connections. The header supports polarizing features, optional ejector latches, and comes in standard or high-temperature insulators, with a current rating up to 5A. It meets UL94V-0 flammability standards and operates from -55°C to +105°C, ensuring durability across demanding environments.
3M 34326003 Four-Wall Connector Specifications:
- Material: Glass Filled Polyester (PBT) or High Temp Glass Filled Polyester (PCT)
- Flammability: UL94V-0
- Color: Gray (PBT), Black (PCT)
- Contact Material: Copper Alloy
- Plating: Nickel underplating with 30μ” Gold wiping area
- Current Rating: 5A (single contact), 3A (multiple contacts)
- Insulation Resistance: >1 x 10^10 Ω at 500V
- Withstanding Voltage: 1,000V at sea level
- Temperature Range: -55°C to +105°C
- Process Temp: High Temp PCT insulator up to 260°C, PBT up to 191°C
- Moisture Sensitivity Level: 1
- Dimensions: Width 0.100”, Length varies with configuration, Notch locations for polarizing keys
- Mounting: Hardware includes #4-24 screw or #2-56 bolt, optional polarizing posts
- Compliance: RoHS, UL listed, E68080
- Connector System: 3000 Series, compatible with 3M high-temperature and polarization options
Buy the 3M Series 3000 Connector: 34326003
Buy the 3M Four-Wall Connector in the 3000 Series today to enhance your electronic connections with a durable, high-temperature, easy-to-install header. Designed for demanding environments, this connector supports secure mounting, polarizing features, and optional latch ejectors, ensuring your projects are reliable and efficient. Available in straight and right angle configurations, it offers optimal flexibility for various connector applications. Purchase online now for quick delivery and backed by industry-leading quality standards for your professional or industrial projects.
Order your 3M Series 3000 Four-Wall Connector today and ensure your electronic assemblies are secure and reliable with high-quality connection solutions.
Frequently Asked Questions
Where can I buy 3M 34326003?
You can click on the BUY or RFQ button to purchase 34326003 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 34326003?
You can download the 34326003 datasheet or visit the 3M website for support.
Who is the manufacturer of 34326003?
3M
