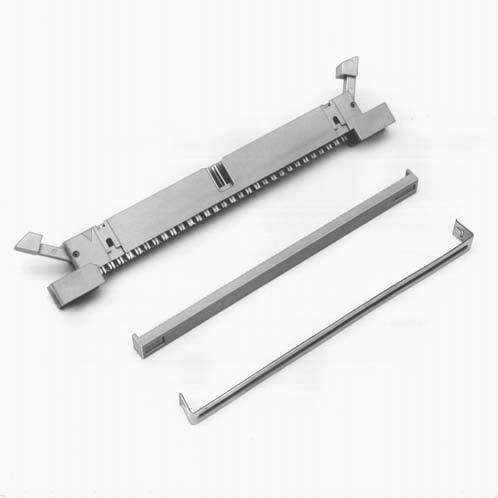

3M 46306301 Wiremount Connector
This is a 0.100-inch connector compatible with 0.050-inch pitch cables, designed for reliable electrical connections in various electronic applications. It features a shrouded design to protect against physical and chemical damage, accepts flat or discrete wires, and includes optional end covers and mounting flanges. Constructed from glass-filled polyester UL 94V-0 material, it provides a current rating up to 500V, withstands temperatures from -55°C to +105°C, and meets RoHS compliance standards. Suitable for use in industrial, automation, and electronic systems requiring durable, high-performance connectors.
3M 46306301 Wiremount Connector Specifications:
- Material: Glass filled polyester UL 94V-0, Gray
- Contact Material: Copper alloy
- Plating: Nickel 100 µin, Gold 30 µin
- Temperature Rating: -55°C to +105°C
- Current Rating: 500V, 1A
- Withstanding Voltage: 350V AC
- Dimensions: Connector size 0.100 inches, Pitch 0.050 inches
- Environmental Compliance: RoHS
- Insulation Resistance: Not specified
- Flammability: UL 94V-0
- Mounting: Optional flanges and strain reliefs available
- Approval: UL Listed, RoHS compliant
Buy the 3M Series 4600 Wiremount Plug: 46306301
Purchase the 3M Series 4600 Wiremount Plug online today to ensure reliable connections for your electronic and industrial systems. Crafted from durable glass-filled polyester, this connector accepts flat or discrete wires, offers optional protection features, and is RoHS compliant. With a current rating of 500V, temperature tolerance from -55°C to +105°C, and UL listing, it guarantees safety and durability. Enhance your assemblies with this high-quality connector to achieve dependable, long-lasting electronic connections in various applications.
Order your 3M Series 4600 Wiremount Plug today and give your electronic projects the dependable quality they deserve, with reliable protection and versatile mounting options.
Frequently Asked Questions
Where can I buy 3M 46306301?
You can click on the BUY or RFQ button to purchase 46306301 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 46306301?
You can download the 46306301 datasheet or visit the 3M website for support.
Who is the manufacturer of 46306301?
3M
