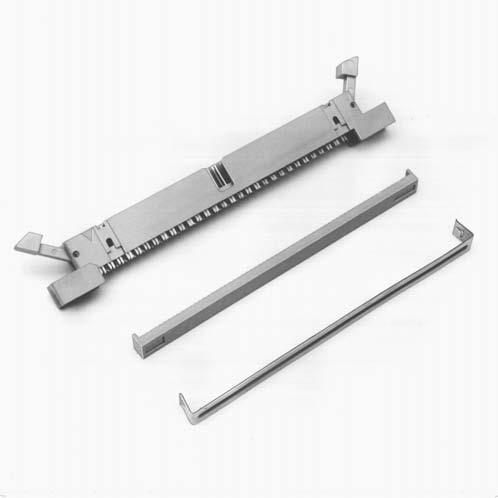

3M 46506301 Wiremount Connector
The 3M™ Wiremount Plug is a durable, high-quality connector designed for electronic applications. It features a 0.100-inch diameter with a .050-inch pitch, compatible with flat cable or discrete wire. Made from UL 94V-0-rated glass-filled polyester, it offers robust insulation, environmental resistance, and mechanical protection. It supports a current rating of 500V, withstands temperatures from -55°C to +105°C, and is suitable for various industrial and electronic assembly uses. Optional accessories include end covers, ejector latches, mounting flanges, and metal strain relief to enhance versatility.
3M 46506301 Wiremount Connector Specifications:
- Material: Glass filled polyester (PBT), UL 94V-0 flammability rating
- Color: Gray
- Contact Material: Copper alloy with gold and nickel plating
- Contact Plating: Gold over nickel, 26 and 30 AWG solid and stranded wire compatible
- Insulation Resistance: Not specified, but typical for UL 94V-0 materials
- Withstanding Voltage: 500V at sea level
- Temperature Rating: -55°C to +105°C
- Wire Accommodation: Accepts flat cable or discrete wire, various mounting options available
- Environmental Resistance: RoHS compliant, resistant to physical and chemical damage
- Certifications: UL Listed E68080, RoHS compliant
- Physical Dimensions: Connector size .100 inch diameter, accepts #4 pan head screws, panel cutout diameter approximately 0.400 inch
- Additional Features: Optional end covers, ejector latches, mounting flanges, and strain reliefs for flexible assembly
Buy the 3M Series 4600 Wiremount Connector: 46506301
Purchase the 3M wiremount connector 46506301 online today to ensure top-quality, reliable connections for your electronic projects. This connector features a precise .100-inch diameter and accepts .050-inch pitch cables, making it ideal for demanding industrial and electronic applications. Constructed from UL 94V-0-rated glass-filled polyester, it offers excellent environmental and mechanical protection. With optional accessories like end covers, ejector latches, mounting flanges, and strain reliefs, this versatile connector helps streamline your assembly process and enhance durability. Order now for fast delivery and optimal performance.
Buy 3M 46506301 wiremount connector now and experience unmatched reliability and performance for your electronic assembly needs.
Frequently Asked Questions
Where can I buy 3M 46506301?
You can click on the BUY or RFQ button to purchase 46506301 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 46506301?
You can download the 46506301 datasheet or visit the 3M website for support.
Who is the manufacturer of 46506301?
3M
