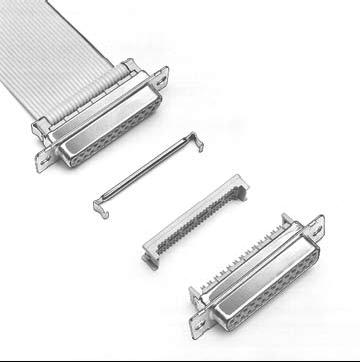

3M 83258000 D-Sub Connector
This is a D-Sub standard connector with 25 pins, featuring an open cover socket design. Made from glass filled polyester with UL94V-0 flammability rating, it supports a maximum current of 1A and withstands voltages up to 1000V. The connector has a steel shell with tin plating and stainless steel strain relief for durability. Suitable for wiring of 26 and 28 AWG, it operates within -55°C to +105°C, providing reliable electrical connections in compact, low-profile configurations with four mounting options available.
3M 83258000 D-Sub Connector Specifications:
- Material: Glass Filled Polyester (PBT)
- Flammability: UL94V-0
- Color: Gray
- Contact Material: Copper Alloy
- Plating: Nickel underplating, Gold wiping area
- Shell Material: Steel with Tin plating
- Strain Relief Material: Stainless Steel, 0.40 inch thick
- Wire Accommodation: 26 and 28 AWG solid or stranded
- Current Rating: 1A
- Insulation Resistance: > 1x10^10 Ohms at 500V
- Withstanding Voltage: 1000V AC
- Temperature Rating: -55°C to +105°C
- Mounting: Four options, front or rear mounting
- Connector Series: 8300, D-Sub Type
- Contact Dimensions: 25 contacts, various A, B, C, D, E measurements
- Physical Dimensions: Compact, low profile design, suitable for panel mounting
- Operating Environment: Industrial, electronic equipment
- RoHS Compliance: Yes
- Regulatory: UL Listed, RoHS compliant
Buy the 3M 83258000 – Reliable Connector for Industrial Applications
Purchase the 3M D-Sub Connector 83258000 online today for high-quality, reliable electrical connections. Its robust steel shell, gold-plated contacts, and stainless steel strain relief ensure long-lasting performance in industrial and electronic applications. Designed to fit compact spaces, the connector supports 26 and 28 AWG wiring, operates efficiently from -55°C to +105°C, and features four mounting options for versatile installation. Buy online now to enhance your electronic assembly with trusted, durable connectors from 3M.
Get 3M 83258000 today—built for precision, durability, and reliable electronic connections in compact spaces.
Frequently Asked Questions
Where can I buy 3M 83258000?
You can click on the BUY or RFQ button to purchase 83258000 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 83258000?
You can download the 83258000 datasheet or visit the 3M website for support.
Who is the manufacturer of 83258000?
3M
