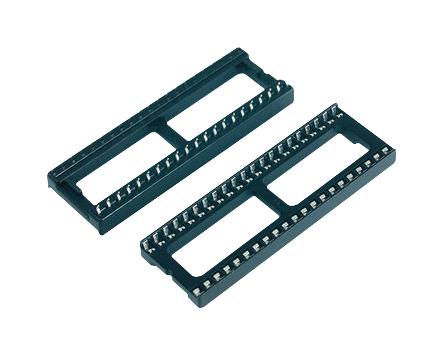

3M 48426000CP DIP Socket
The 3M™ DIP Socket 4800 Series features stamped and formed, dual-wipe high compression contacts for reliable electrical connections. Designed for easy insertion compatible with most insertion equipment, these sockets are side and end stackable, making them suitable for compact electronic assemblies. Constructed with polyester glass-filled insulation material, they meet UL 94V-0 flammability standards. With precise dimensions, suitable for lead-free wave soldering, and environmental ratings from -25°C to +85°C, these sockets provide durable and temperature-resistant performance for various electronic applications.
3M 48426000CP DIP Socket Specifications:
- Insulation Material: Polyester Glass Filled
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Phosphor Bronze
- Surface Plating: Matte Tin over Nickel, minimum 0.89 µm Nickel, 3.43 µm Tin
- Insertion Force: 340 grams max. per contact
- Withdrawal Force: 80 grams min. per contact
- Acceptable Pin Size Diameter: .010" - .011" (0.25 mm - 0.27 mm)
- Pin Length: .100" - .130" (2.54 mm - 3.30 mm)
- Hole Diameter: .035" - .043" (0.90 mm - 1.10 mm)
- Current Rating: 1A
- Insulation Resistance: 5,000 MQ at 500 V
- Withstanding Voltage: 100 V for 1 minute
- Temperature Rating: -25°C to +85°C
- Process Rating: Max. 260°C for wave soldering
- Physical Dimensions: Body style and sizes vary; dimensions provided for different models, e.g., length, width, height up to approximately 50 mm depending on configuration.
Buy the 3M Series 4800 DIP Socket: 48426000CP
Order the 3M 48426000CP DIP Socket online today and ensure reliable electrical connections for your electronic projects. Engineered with dual-wipe contacts, these sockets provide excellent contact compression and secure termination. Designed for PCB mounting with precise dimensions, they support lead-free wave solder processes, not reflow. Ideal for compact, high-performance electronics requiring durable and temperature-resistant components. Their stackable design offers high flexibility in assembly, making them a versatile choice for manufacturers and engineers seeking dependable, easy-to-install DIP sockets for a range of electronic applications.
Buy 3M 48426000CP DIP Socket now and experience unmatched reliability and performance in electronic connectors and secure circuit connections.
