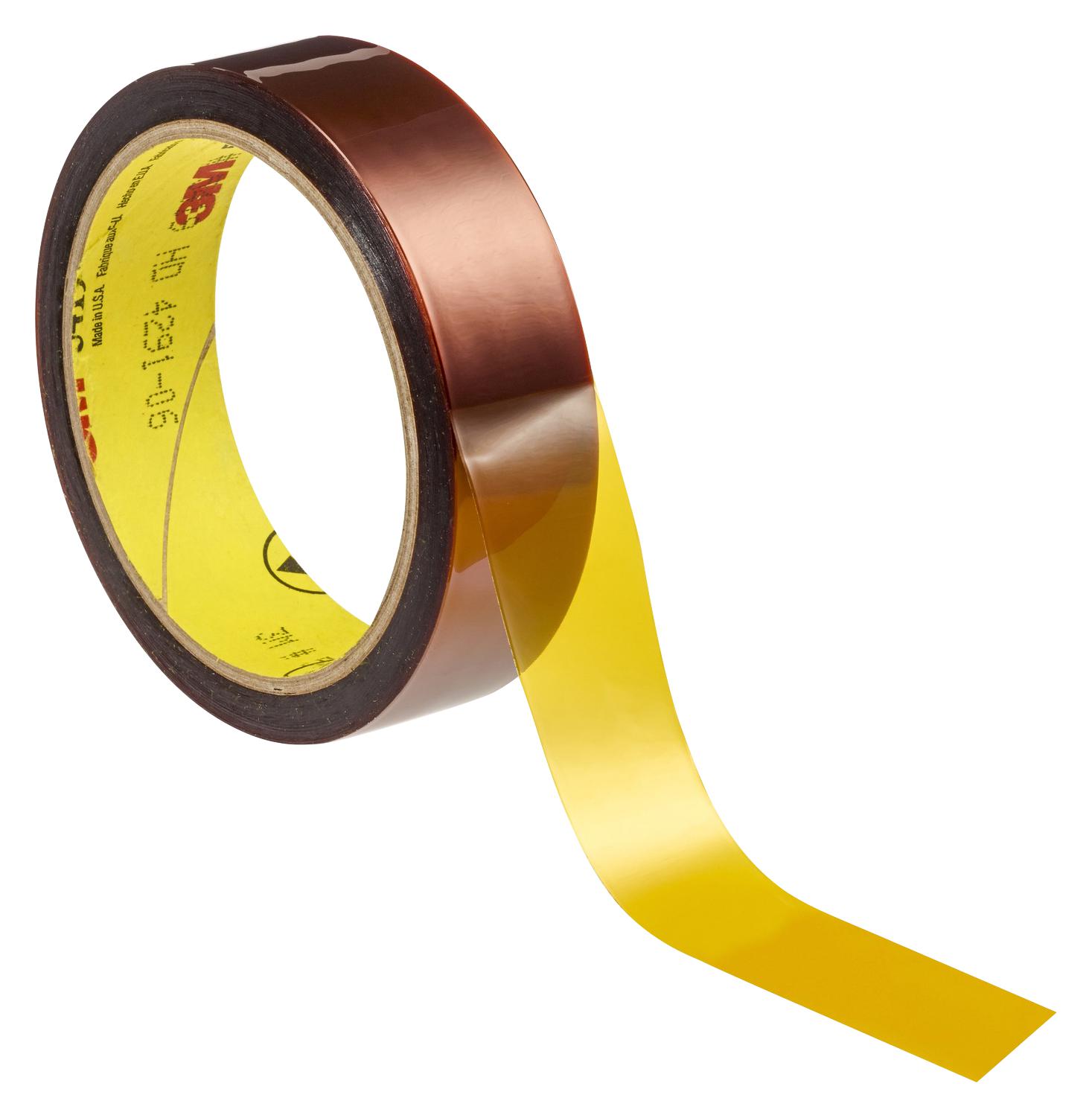

3M 541319MM Polyimide Tape
3M™ Polyimide Film Tape 5413 features DuPont™ Kapton® polyimide film with a 2.7 mil (69 microns) thickness and silicone adhesive, suitable for high-temperature PCB solder masking and electronic fabrication. Its amber color and flame retardant, chemical, and radiation-resistant properties ensure durability and reliability in demanding environments. The tape maintains dimensional stability at elevated temperatures, providing a clean release surface during assembly processes and high-temperature curing, reducing rework and improving productivity. It’s ideal for protecting gold fingers and masking in electronics manufacturing, offering excellent electrical insulation and heat resistance.
3M 541319MM Polyimide Tape Specifications:
- Backing Material: DuPont™ Kapton® Polyimide Film
- Adhesive: Silicone
- Color: Amber
- Standard Roll Length: 33 m (36 yd)
- Adhesion to Steel: 22 oz/in width (24 N/100 mm)
- Tensile Strength at Break: 33 lb/in width (678 N/100 mm)
- Elongation at Break: 62%
- Backing Thickness: 1.0 mil (0.03 mm)
- Total Tape Thickness: 2.7 mil (0.07 mm)
- Temperature Use Range: -73°C to 260°C (-100°F to 500°F)
- Dielectric Strength: 7000 volts
- Outgassing: %TLM = 1.50, %CVCM = 0.50
- Flame Retardancy: Pass UL-510
Buy the 3M Series Polyimide Tape: 541319MM
Order 3M Polyimide Tape 5413 now for your high-temperature PCB solder masking, electronic fabrication, and insulation needs. This premium tape offers excellent dimensional stability, flame retardancy, chemical resistance, and superior electrical insulation. Its durable silicone adhesive ensures a strong bond and clean release during processing. Perfect for protecting gold fingers and masking during wave soldering or heat curing, this tape enhances productivity, minimizes rework, and withstands up to 260°C. Purchase online today for reliable performance in demanding manufacturing environments.
Get 3M Polyimide Tape 5413 today—designed for high-temperature electronic assembly and PCB protection with durable, flame-retardant performance.
Frequently Asked Questions
Where can I buy 3M 541319MM?
You can click on the BUY or RFQ button to purchase 541319MM from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 541319MM?
You can download the 541319MM datasheet or visit the 3M website for support.
Who is the manufacturer of 541319MM?
3M
