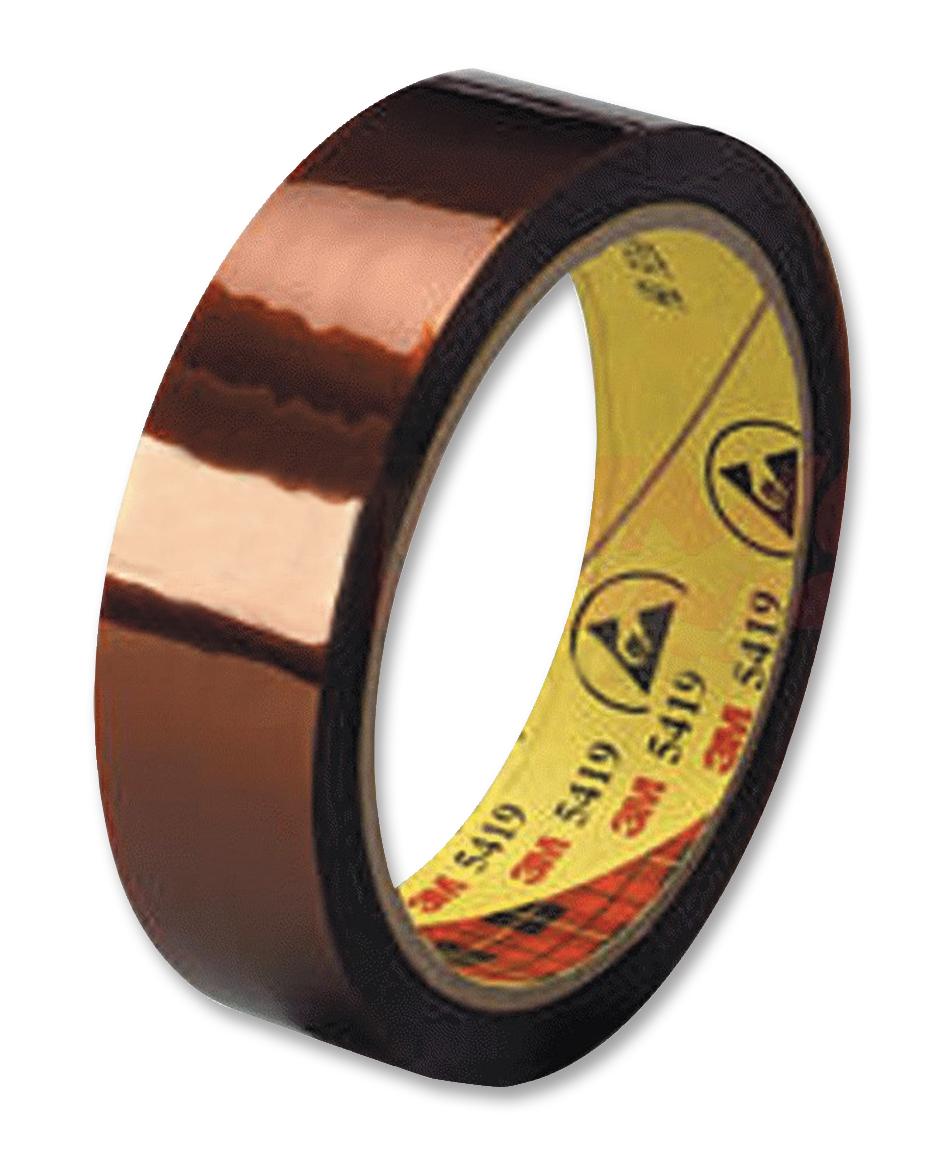

3M 5419 Polyimide Film Tape
The 5419 Low Static Polyimide Film Tape is a translucent polyimide backing with silicone adhesive, designed for gold edge protection during wave soldering of printed circuit boards. It exhibits extremely low electrostatic discharge properties, preventing damage from static buildup, with removal static charges below 150 volts from roll and 50 volts from PCB. It offers high temperature resistance up to 260°C, excellent dielectric strength of 7000 volts, and dimensional stability at elevated temperatures. Ideal for masking, fabrication, and protecting sensitive electronic components in high-reliability environments.
3M 5419 Polyimide Film Tape Specifications:
- Backing Material: Polyimide
- Adhesive Type: Silicone
- Thickness: 70 um (ASTM D-3652)
- Backing Thickness: 30 um
- Color: Gold
- Shelf Life: 12 months at 21°C and 50% RH
- Adhesion to Stainless Steel: 2.2 N/10mm
- Tensile Strength: 577.8 N/10mm (ASTM D-3759)
- Elongation at Break: 60%
- Maximum Temperature: 260°C
- Minimum Temperature: -73°C
- Dielectric Strength: 7000 volts
- Insulation Resistance: >1×10^10 ohms
- Static Discharge from roll: <150 volts
- Static Discharge from PCB: <50 volts
- Features: Flame retardant, chemical resistant, dimensionally stable at high temperatures, reduces electrostatic damage
- Application: Masking in wave soldering, fabrication of high-temp parts, static-sensitive electronics protection
Buy the 3M 5419 Low Static Polyimide Tape – Reliable PCB Protection for Industrial Applications
Enhance your electronics manufacturing process with the 3M 5419 Low Static Polyimide Tape. Designed for superior static discharge control, this high-temperature resistant tape features silicone adhesive and a gold polyimide backing, ensuring stability and protection during wave soldering and PCB fabrication. Its excellent dielectric strength, dimensionally stable at high temperatures, and low static charge generation help reduce component damage and improve productivity. Ideal for masking, static-sensitive applications, and high-temperature operations, this tape is a must-have for electronic industry professionals seeking durability and precision.
Buy 3M 5419 Low Static Polyimide Tape now and experience unmatched reliability and performance in protecting electronic assemblies from static and high temperatures.
Frequently Asked Questions
Where can I buy 3M 5419?
You can click on the BUY or RFQ button to purchase 5419 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 5419?
You can download the 5419 datasheet or visit the 3M website for support.
Who is the manufacturer of 5419?
3M
