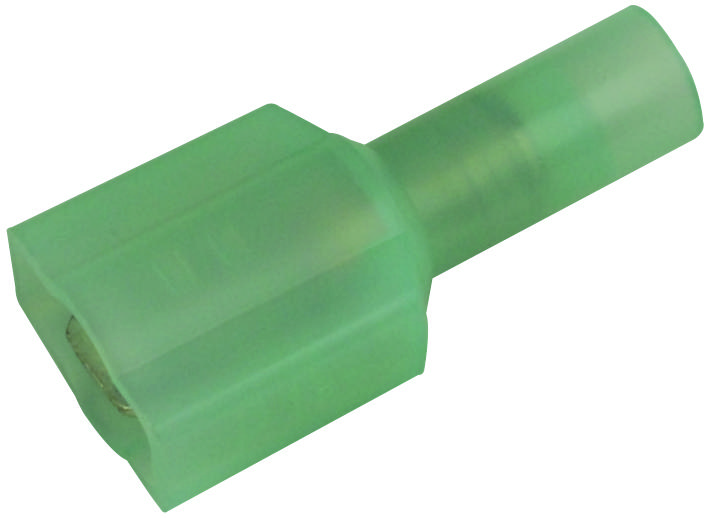

3M 72M25032NL Nylon Male Disconnect
The nylon insulated male disconnect terminals are fully insulated with a butted seam design, suitable for wire sizes 22-18, 16-14, and 12-10 AWG. They feature a 0.250 x 0.032-inch barrel and a maximum voltage rating of 600 V for building wiring and 1000 V for signs and fixtures. Made of tin-plated copper with nylon insulation, these connectors ensure safe, reliable connections in electrical applications, conforming to UL and CSA standards, rated for temperatures up to 221°F (105°C). They are ideal for both field and factory wiring with recommended crimp tools.
3M 72M25032NL Nylon Male Disconnect Specifications:
- Wire Size: 22-18, 16-14, 12-10 AWG
- Barrel Dimensions: 0.250 x 0.032 inches
- Maximum Voltage Rating: 600 V (building wire), 1000 V (signs/fixtures)
- Temperature Rating: 221°F (105°C)
- Material: Tin-plated copper
- Insulation: Nylon
- Seam: Butted
- Maximum current: Not specified
- Certifications: UL Listed, CSA Certified
Buy the 3M Series 71M Nylon Fully Insulated Male Disconnect: 72M25032NL
Purchase the nylon fully insulated male disconnect terminals from 3M online today. These high-quality connectors are rated for 600V to 1000V, suitable for building wiring, signs, and fixtures. Made of durable tin-plated copper with nylon insulation, they ensure safe, efficient, and code-compliant connections. Designed with a butted seam and precise dimensions, these terminals fit wire sizes from 22 to 10 AWG. Compatible with common crimp tools, they offer excellent reliability for both field and factory applications. Buy now and enhance your electrical assemblies with confidence.
Order your 3M Series 72M25032NL nylon fully insulated male disconnect terminals today and ensure reliable, compliant connections for your electrical projects.
Frequently Asked Questions
Where can I buy 3M 72M25032NL?
You can click on the BUY or RFQ button to purchase 72M25032NL from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 72M25032NL?
You can download the 72M25032NL datasheet or visit the 3M website for support.
Who is the manufacturer of 72M25032NL?
3M
