3M 7738MM Arc-proofing Tape
Scotch® Fire-Retardant Electric Arc Proofing Tape 77 Series provides high-energy power and control cables with essential arc fault protection. Designed for exposed and vulnerable locations, this elastomeric tape creates a durable, insulating char barrier when subjected to high temperatures, effectively shielding cables from fault arc heat and flames within approximately 20 inches. Its conformable, unsupported elastomer allows for virtually wrinkle-free application over irregular shapes, ensuring consistent coverage and space-saving thin profile. Resistant to water, salt water, acids, sewage, and UV light, the tape lasts for the cable's lifetime and can be reused, making it ideal for critical electrical infrastructure.
3M 7738MM Arc-proofing Tape Specifications:
- Total Thickness: 0.030 inches (0.76 mm)
- Color: White-Gray or Black
- Breaking Strength: 1200 psi (8.3 MPa)
- Elongation at Break: 150%
- Flame Resistance: UL 94 V-0 Self-extinguishing
- Oxygen Index: 26-28%
- Dielectric Breakdown: > 10,000V
- Thermal Conductivity: 0.15 BTU-ft/(ft²·hr·°F) at 23°C
- Resistant to water, salt water, acids, gases, and sewage
- Capable of over 100% elongation
- Suitable for wrapping high-energy power and control cables in exposed areas
- Supports half-lap wrapping for effective arc protection
- Shelf Life: 5 years when stored in humidity-controlled environment (10°C to 27°C, <75% humidity)

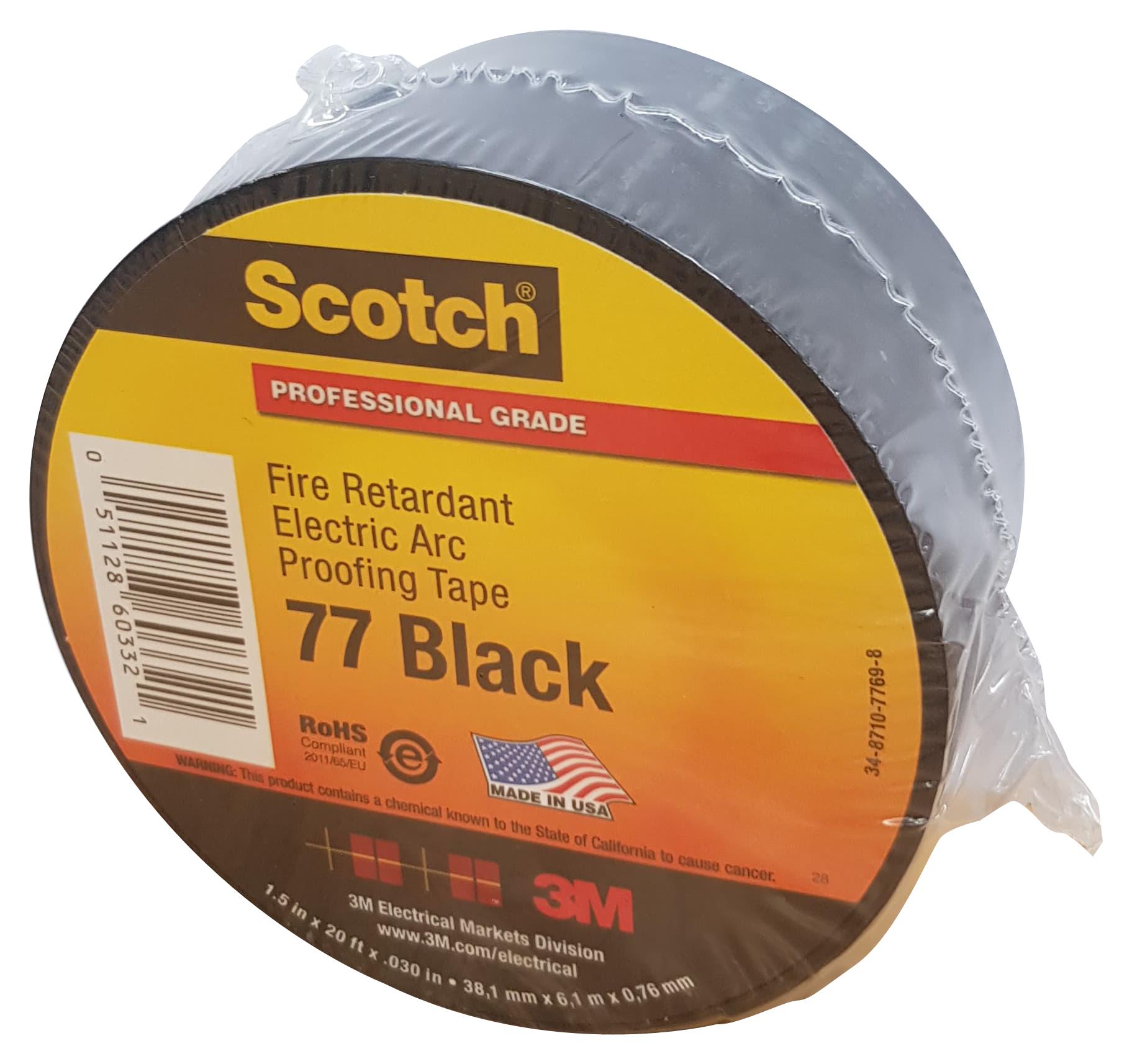

Buy the 3M Series 77 Arc Proofing Tape: 7738MM
Secure your critical electrical cables with the durable, conformable, and flame-resistant arc proofing tape designed for high-energy power and control cables. Easy to install with half-lap wrapping, it provides exceptional insulation and protection against fault arc heat and flames within 20 inches. Made from a flexible, unsupported elastomer, the tape resists water, acids, and UV light, ensuring long-term reliability. Ideal for exposed locations like manholes, vaults, and open cable trays, it offers a cost-effective safety solution with a five-year shelf life when stored properly.
Order your 3M Series 77 Arc Proofing Tape 7738MM today and ensure reliable, long-lasting protection against electrical arcs and faults in critical cable installations.
Frequently Asked Questions
Where can I buy 3M 7738MM?
You can click on the BUY or RFQ button to purchase 7738MM from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 7738MM?
You can download the 7738MM datasheet or visit the 3M website for support.
Who is the manufacturer of 7738MM?
3M
