3M 812510 Power Flat Cable
The 3M Round Conductor Flat Cable features 24 AWG stranded tinned copper conductors insulated with durable PVC. Designed for power applications, it offers high current capacity and flexibility. The cable has a dark gray PVC insulation, with individual conductors laminated to a backing that can be zipped for branching. It supports voltage ratings of 300V in the USA, 150V in Canada, and below 50V in the EU. Suitable for environments requiring RoHS compliance, its features include high insulation resistance, specific impedance, and flammability ratings of VW-1 and FT1 respectively.
3M 812510 Power Flat Cable Specifications:
- Conductor Material: Tinned Stranded Copper
- Gauge: 24 AWG
- Insulation Material: Polyvinyl Chloride (PVC)
- Insulation Color: Dark Gray
- Voltage Rating: USA: 300V, Canada: 150V, EU: <50V
- Insulation Resistance: > 1 x 10^9 ohm/10 ft (3m)
- Capacitance: 9.6 pF/ft (31.5 pF/m)
- Inductance: 0.18 uH/ft (0.59 uH/m)
- Propagation Delay: 1.30 ns/ft (4.27 ns/m)
- Velocity of Propagation: 78%
- Flammability Rating: VW-1 (USA), FT1 (Canada)
- Temperature Range: -20°C to +105°C in the USA, -20°C to +80°C in Canada
- Standard Lengths: 100 ft rolls
- Conductors: 7 x 32 (7 x 0.203 mm diameter)

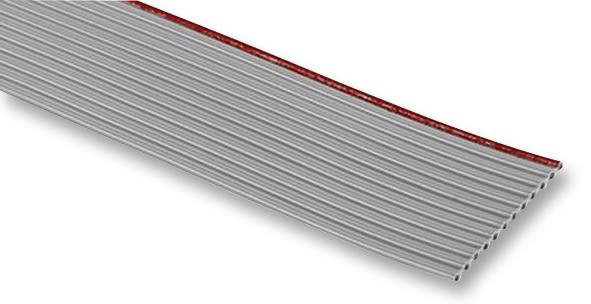

Buy the Buy 3M Round Conductor Flat Cable Part Number 812510 Online
Purchase the 3M flat power cable online today for reliable, flexible wiring solutions suitable for power applications. This high-quality cable features 24 AWG tinned copper conductors insulated with durable PVC. Its design supports voltage ratings up to 300V and features excellent insulation resistance. Ideal for complex wiring setups, the cable is RoHS compliant, flame-rated with VW-1 and FT1 standards, ensuring safety and durability. Order now to enhance your electrical projects with trusted 3M performance and convenience.
Buy 3M 812510 flat cable now and enjoy high power capacity and flexible wiring solutions with RoHS compliance and durable PVC insulation.
Frequently Asked Questions
Where can I buy 3M 812510?
You can click on the BUY or RFQ button to purchase 812510 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 812510?
You can download the 812510 datasheet or visit the 3M website for support.
Who is the manufacturer of 812510?
3M
