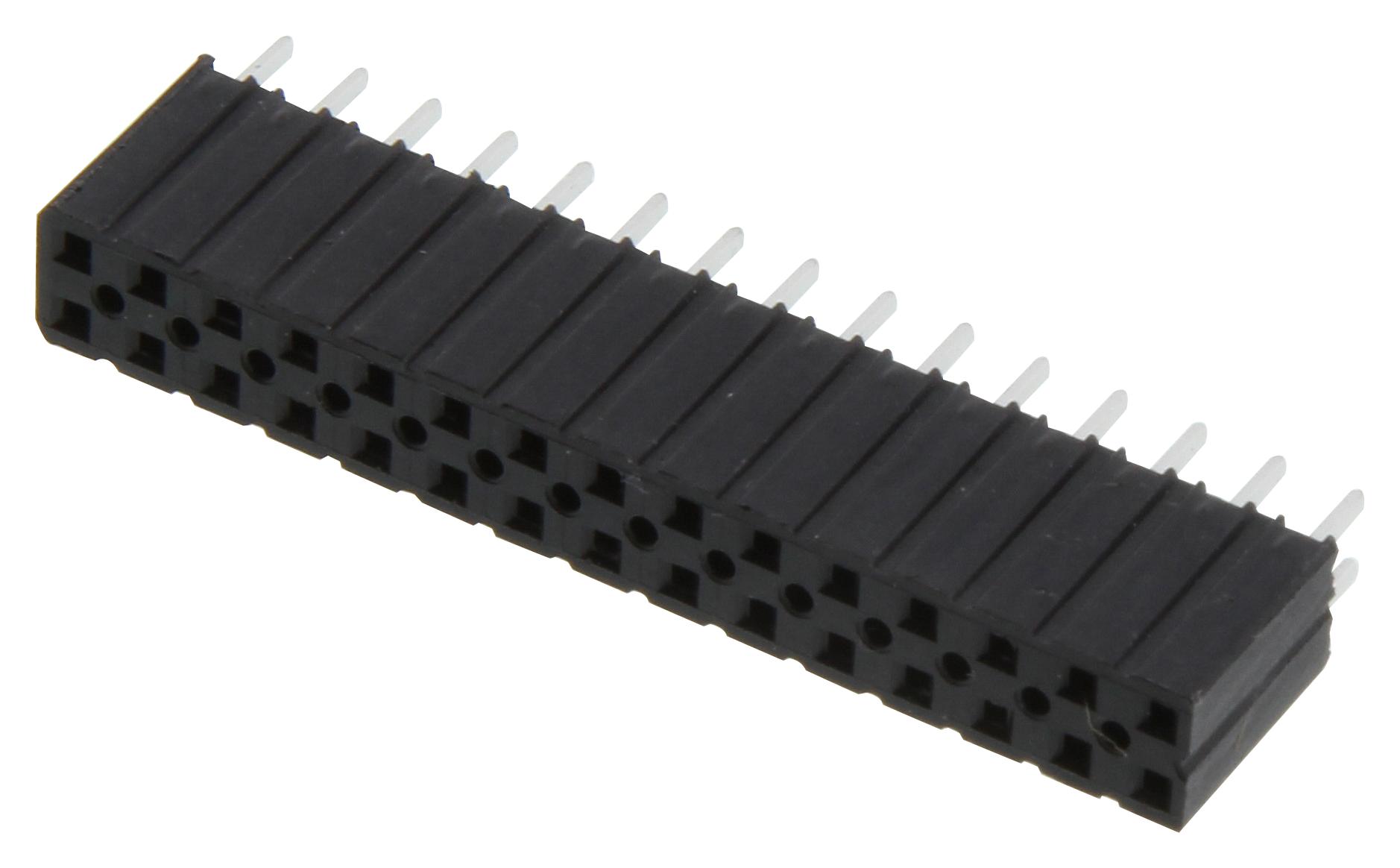

3M 9299750115RK Boardmount Socket
The 3M Boardmount Socket from the 929 Series features a durable glass-filled polyester insulator, UL 94V-0 flammability rating, and a black color. It uses copper alloy contacts with nickel and tin-lead or matte tin plating for excellent electrical performance. Designed for reliable soldering with solder standoffs and optional board retention, it supports 2 amps current, withstands voltages up to 1500V at sea level, and operates from -40°C to +105°C. Ideal for electronic interconnections in demanding environments, it offers versatile configurations with multiple contact and dimension options.
3M 9299750115RK Boardmount Socket Specifications:
- Insulator Material: Glass Filled Polyester
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Nickel 100 µ
- Tin Lead or Matte Tin
- Current Rating: 2 amps maximum
- Insulation Resistance: >5 x 10^9 Ω at 500 V
- Withstanding Voltage: 1500 V at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Temperature: 260°C (J-STD-020C), Maximum molded insulator temperature 191°C
- Physical Dimensions: Variations from 0.20 inches (5.08 mm) to 4.00 inches (101.60 mm) in length, standard hole patterns for mounting, multiple contact configurations
- Certifications: UL File No. E68080
Buy the 3M Series 929 Socket: 9299750115RK
Secure your electronic projects with the 3M Series 929 Boardmount Socket. Designed for durability and high electrical performance, it features solder tails, optional board retention, and versatile contact configurations. Suitable for demanding environments, this socket supports up to 2 amps current and withstands voltages up to 1500V at sea level. Easy to install with recommended hole patterns, its robust construction ensures long-lasting reliable connections across a wide temperature range from -40°C to +105°C. Purchase online today for dependable circuit integration.
Buy 3M Series 929 Socket now and experience unmatched reliability and performance in electronic interconnections and circuit board assemblies.
Frequently Asked Questions
Where can I buy 3M 9299750115RK?
You can click on the BUY or RFQ button to purchase 9299750115RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299750115RK?
You can download the 9299750115RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9299750115RK?
3M
