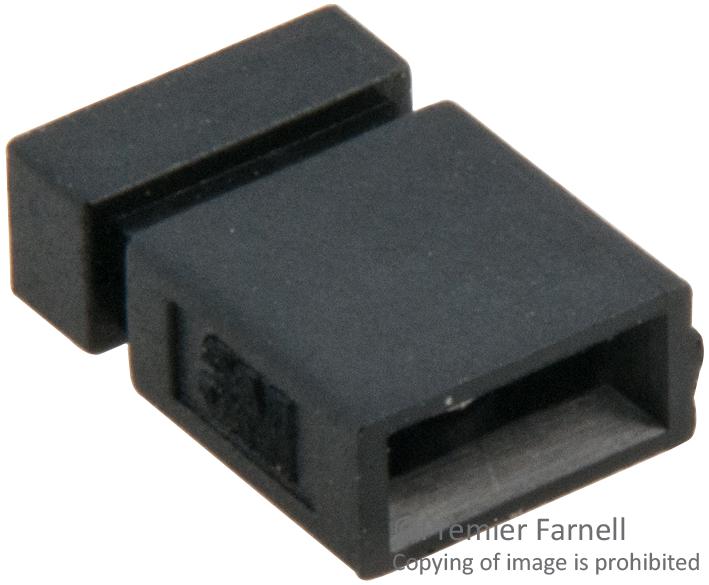

3M 92995000 Electrical Shunt
The 3M PAK 100 Shunt is a compact, midgie-sized electrical shunt with a 0.100-inch diameter, designed for reliable connections in electronic applications. It features a unique C-shaped spring contact that ensures balanced forces and secure mating. Constructed with a glass-filled polyester body, the shunt is available with gold or matte tin plating for durability and corrosion resistance. It supports an insulation resistance greater than 1x10² ohms at 500 VDC, withstands 1500 Vrms at sea level, and operates within a temperature range of -55°C to +100°C. Its stackable design allows for end-to-end and side-to-side configurations, making it versatile for various circuit assemblies.
3M 92995000 Electrical Shunt Specifications:
- Body Material: Glass filled polyester, UL 94 V-O, color coded black, blue or gray
- Contact Material: Phosphor bronze with gold or matte tin plating
- Contact Plating: 10 or 30 micron gold on wipe area with nickel overlay; matte tin 100-200 micron on wipe area with nickel
- Insulation Resistance: Greater than 1x10² ohms at 500 VDC
- Withstanding Voltage: 1500 Vrms at sea level
- Temperature Range: -55°C to +100°C
- Dimensions: Diameter 0.100 inches (2.54 mm)
- Stackable: End-to-end and side-to-side configurations possible
- Recommended Mating Pins: 2-025 (0.64 inches) round or square
- Certifications: UL Listed
- Applicable standards: RoHS compliance, regulatory info available on manufacturer website
Buy the 3M Series 929 Shunt: 92995000
Order the 3M 92995000 electrical shunt online today for high-quality, dependable connections in your electronic assemblies. Featuring a 0.100-inch diameter, a unique C-shaped spring contact, and stackable design options, this shunt is built to ensure secure and durable connections. With gold or matte tin plating, insulation resistance exceeding 1x10² ohms at 500 VDC, and a temperature range of -55°C to +100°C, it is ideal for various industrial and electronic applications. Purchase now for fast delivery and outstanding performance.
Get 3M 92995000 shunt today—designed for reliable electrical connections, stackable configurations, and long-lasting durability.
Frequently Asked Questions
Where can I buy 3M 92995000?
You can click on the BUY or RFQ button to purchase 92995000 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 92995000?
You can download the 92995000 datasheet or visit the 3M website for support.
Who is the manufacturer of 92995000?
3M
