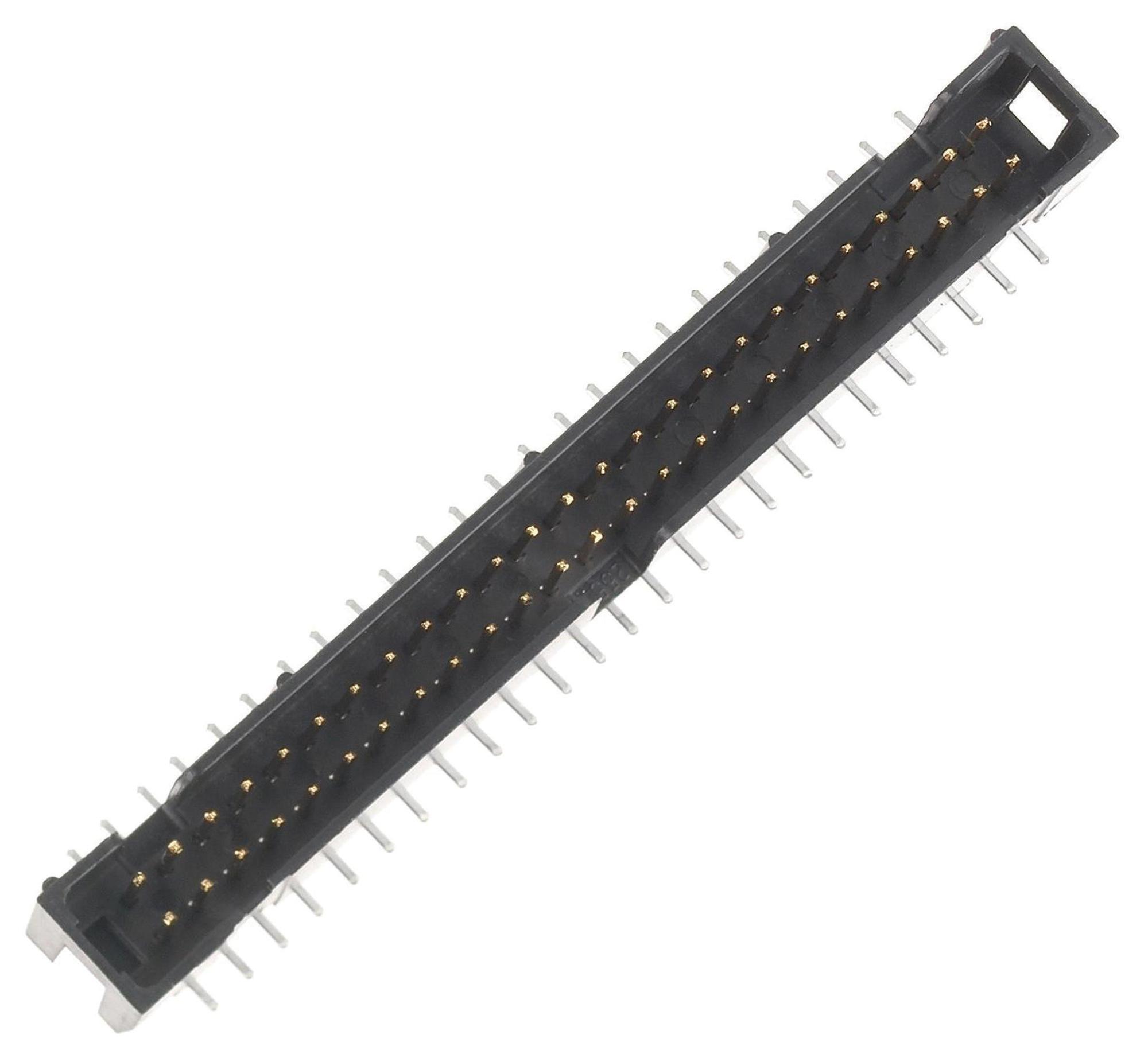

3M D25206V0CARWE Four-Wall Header
The 3M Four-Wall Header Series D2500 is a low-profile, space-saving connector designed for surface mount and through-hole applications. It features polarization for easy insertion, optional retainers for vibration resistance, and high-temperature insulators compatible with lead-free soldering processes. Made of UL 94V-0 rated high-temp glass-filled polyester with brass contact material, gold or matte tin plating, it offers rated currents up to 5A and insulation resistance above 1x10^10Ω at 500V. Suitable for various electronic assemblies requiring reliable connections and vibration resistance.
3M D25206V0CARWE Four-Wall Header Specifications:
- Insulator Material: High Temp Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Brass
- Plating: 50-100 μm Ni underplating, 10 μm Gold or Matte Tin
- Current Rating: 5A per contact, 3A for all contacts powered
- Insulation Resistance: >1x10^10Ω at 500V RMS
- Withstanding Voltage: 1000 V at Sea Level
- Temperature Rating: -55°C to +105°C
- Process Rating: Soldering at 260°C single pass
- Moisture Sensitivity Level: Level 1
- Physical Dimensions: Header height varies from 0.81 inches (for 10-pin) to 3.53 inches (for 64-pin), pin spacing 0.100 inches, notches for polarization, optional retainer clip available
- Packaging: Tape & reel options available, pin counts from 6 to 64, RoHS compliant
Buy the 3M Series D2500 Four-Wall Header: D25206V0CARWE
Order the 3M Series D2500 Four-Wall Header D25206V0CARWE online today for a highly reliable, space-saving connector suitable for PCB applications. This low-profile, polarization-enabled header features high-temp insulators compatible with lead-free soldering techniques, making it ideal for demanding electronic assemblies. With options for surface mount or through-hole mounting, gold or matte tin plating, and optional lock retainers, it delivers excellent vibration resistance and durability, ensuring secure connections in various industrial and consumer electronics. Purchase now for quick delivery and hassle-free installation.
Buy 3M Series D2500 Four-Wall Header D25206V0CARWE now and ensure reliable, vibration-resistant connections with high-temperature insulation and optional locking features.
