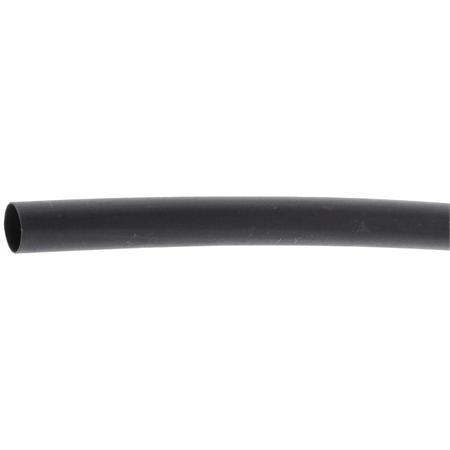

3M FP3011448BLACKHDR Polyolefin Heat Shrink Tubing
High-quality polyolefin heat shrink tubing from the FP-301 series offers excellent electrical insulation and environmental protection. Featuring a 2:1 shrink ratio, this thin-walled tubing is suitable for cable splices, terminations, wire harness covering, wire marking, component packaging, and fire-resistant applications. It meets MIL-I-23053/5 Class 1 and 2, as well as AMS 3636 and AMS 3637 standards. UL recognized and CSA certified for 600V at 125°C. Each piece measures 48 inches in length.
3M FP3011448BLACKHDR Polyolefin Heat Shrink Tubing Specifications:
- Material: Polyolefin
- Shrink Ratio: 2:1
- Certifications: UL Recognized, CSA Certified
- Voltage Rating: 600 volts
- Temperature Rating: Continuous at 125°C, short-term up to 300°C
- Minimum Shrink Temperature: 100°C
- Colors: Black, white, red, blue, green, yellow, clear
- Sizes: Range from 3/64 inch (1.17 mm) to 4 inches (101.60 mm)
- Physical: Wall thickness varies with size, typical tensile strength 2400 PSI, specific gravity 1.3
- Electrical: Dielectric strength 900 V/mil, volume resistivity 10^14 ohm-cm
- Chemical: Non-corrosive, solvent resistant
- Dimensions: Length 48 inches, various expanded diameters
- Standards: MIL-DTL-23053/5 Class 1 & 2, AMS-3636, AMS-3637
Buy the 3M Series FP-301 Polyolefin Heat Shrink Tubing: FP3011448
Order 3M FP-301 polyolefin heat shrink tubing online now and ensure excellent electrical insulation for your wiring projects. This 48-inch length offers a reliable 2:1 shrink ratio, making installation easy and secure. It is UL recognized and CSA certified for safety at 600V and 125°C, providing thermal protection and environmental resistance. Ideal for cable splices, wire harness covering, and electrical insulation in demanding industrial and military settings. Purchase today for fast delivery and high-quality performance that lasts.
Get 3M FP-301 48-inch polyolefin heat shrink tubing today—built for reliable insulation and durable performance in industrial applications.
Frequently Asked Questions
Where can I buy 3M FP3011448BLACKHDR?
You can click on the BUY or RFQ button to purchase FP3011448BLACKHDR from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part FP3011448BLACKHDR?
You can download the FP3011448BLACKHDR datasheet or visit the 3M website for support.
Who is the manufacturer of FP3011448BLACKHDR?
3M
