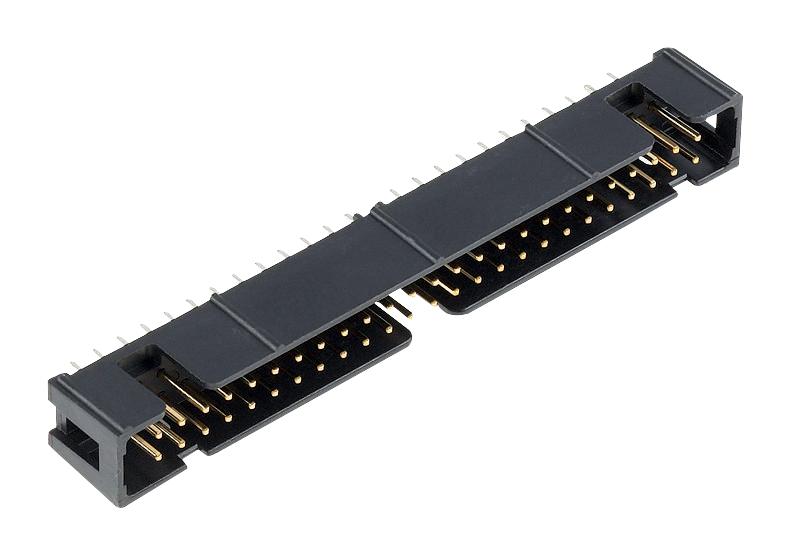

3M N25106002RBWD Four Wall Header
The 3M™ Four-Wall Header is a space-efficient, low-profile connector designed for PCB applications. Suitable for surface mount, straight, and right-angle through-hole configurations, it features polarization to prevent mis-insertion, optional lock and high-temperature insulator options for enhanced reliability in vibration-prone and high-temperature environments. The header employs glass-filled polyester insulators, copper alloy contacts with gold and tin-lead plating, and supports current ratings up to 5A. It complies with RoHS standards and offers easy cleaning, reflow soldering, and compatibility with various polarization designs, making it ideal for industrial and electronic manufacturing applications.
3M N25106002RBWD Four Wall Header Specifications:
- Insulator Material: Glass Filled Polyester (PBT, high-temp option available), Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Contact Material: Copper Alloy
- Plating: Nickel underplating, Gold or Tin-Lead solder tails as per ordering
- Current Rating: 5A (single contact), 3A (multiple contacts)
- Electrical Resistance: Insulation resistance >1 x 10^10 Ω at 500V
- Withstanding Voltage: 1000V at sea level
- Temperature Rating: -55°C to +105°C (operational), Soldering temp of 191°C or 260°C depending on insulator
- Moisture Sensitivity Level: 1 (per J-STD-020C)
- Dimensions: Length varies with pin count, typical pitch 0.100" (2.54mm), height 0.350" to 0.500" depending on series
- Compatibility: Polarization prevents mis-insertion, optional retainer clips for vibration resistance, high-temp insulators for reflow soldering
- Certifications: UL Listed (File No.: E68080), RoHS compliant
