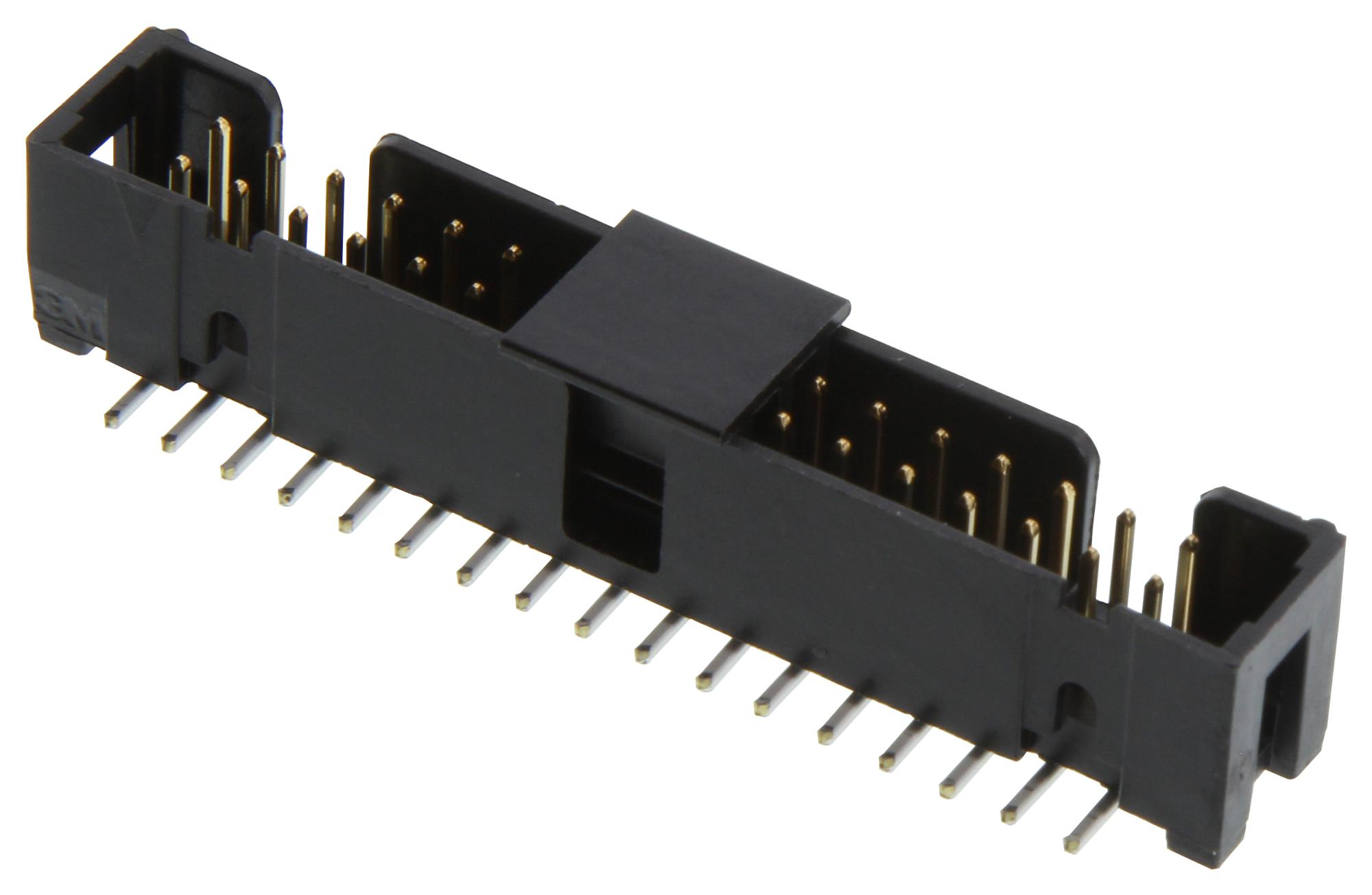

3M N25346V0CRBWF 4-Wall Header
The 3M™ 4-Wall Header is a space-saving, low-profile connector designed for quick assembly with polarized slots to prevent mis-insertion. Suitable for SMT and PTH applications, it features high-temperature insulators, exposed solder tails for easy cleaning, and optional locking retainers for vibration-prone environments. Made of UL 94V-0 rated glass-filled polyester, it complies with RoHS standards, supports up to 2A current, and withstands temperatures from -55°C to +105°C. Its rugged design ensures reliable electrical connections, ideal for industrial electronics and high-density circuit board applications.
3M N25346V0CRBWF 4-Wall Header Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Nickel underplating, Gold or Matte Tin over nickel
- Current Rating: 2A
- Insulation Resistance: >1 x 10? Q at 500 Vde
- Withstanding Voltage: 1000 Vrms at sea level
- Temperature Rating: -55°C to +105°C
- Process Rating: Max 260°C, single pass
- Moisture Sensitivity Level: 1
- Dimensions: 100” x .100” profile, various pin configurations up to 64 pins
- Physical: Exposed solder tails, optional locking retainers, polarization features
- Certifications: RoHS compliant, UL Listed
Buy the Buy 3M 4-Wall Header Part Number N25346V0CRBWF Online
Order the 3M 4-Wall Header N25346V0CRBWF online today and experience a space-efficient, high-performance connector suitable for SMT and PTH mounting. Its polarized slots and optional retainer clip ensure secure, reliable connections in vibration-prone environments. Constructed from UL 94V-0 rated glass-filled polyester, the header supports high-temperature soldering processes up to 260°C. Compatible with RoHS standards, it provides excellent electrical insulation, easy soldering, and robust mechanical stability. Ideal for industrial electronics, circuit boards, and high-density component applications requiring dependable performance and quick assembly.
Get 3M 4-Wall Header N25346V0CRBWF today—designed for durable, high-reliability electronic connections with polarization and locking features.
Frequently Asked Questions
Where can I buy 3M N25346V0CRBWF?
You can click on the BUY or RFQ button to purchase N25346V0CRBWF from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part N25346V0CRBWF?
You can download the N25346V0CRBWF datasheet or visit the 3M website for support.
Who is the manufacturer of N25346V0CRBWF?
3M
