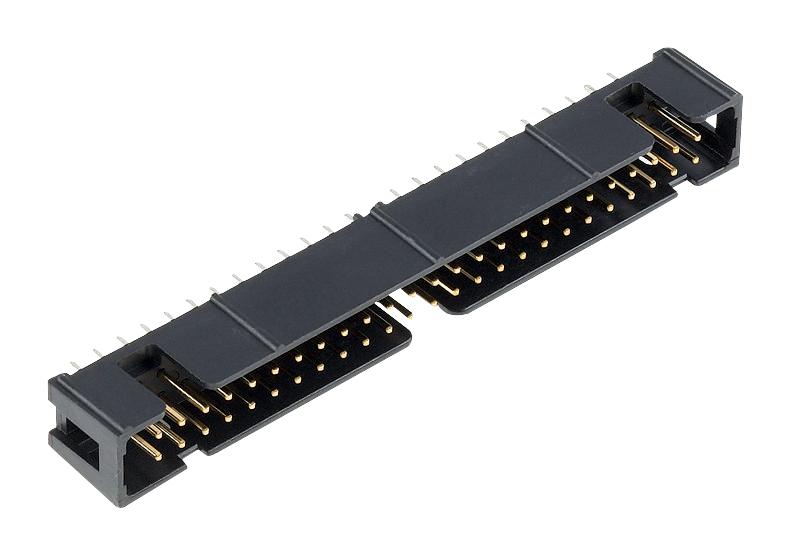

3M N25406003RB 2500 Series Connector
This is a 0.100 inch (2.54 mm) low-profile surface-mount technology (SMT) straight and right-angle through-hole connector from the 2500 Series. It provides reliable electrical connections with a compact profile, suitable for various electronic applications.
3M N25406003RB 2500 Series Connector Specifications:
- Insulator Material: Glass Filled Polyester (PBT) or High Temp PCT
- Flammability: UL 94V-0
- Color: Gray (PBT) or Black (PCT)
- Contact Material: Copper Alloy
- Plating: Underplating Nickel (2.54 μm), gold wiping area, tin-lead or matte tin solder tails
- Current Rating: 5.00 A (contacts powered), 3.00 A (6 contacts), 1.75 A (all contacts)
- Insulation Resistance: >1 x 10^9 Ω at 500 V
- Withstanding Voltage: 1000 V at sea level
- Temperature Rating: -55°C to +105°C
- Process Rating: High Temp PCT insulator up to 260°C, PBT up to 191°C
- Moisture Sensitivity Level: 1
- UL File No.: E68080
Buy the 3M Series 2500 Connector: N25406003RB
Order the 3M 2500 Series connector N25406003RB today for high-performance, compact electrical connections. Featuring gold-plated contacts, high current capacity, and exceptional temperature resistance up to 105°C, this connector is perfect for space-constrained electronic assemblies. Its reliable insulation and plating ensure durability and corrosion resistance, making it ideal for demanding environments. Easy to solder and handle, it guarantees secure, long-lasting connections, suitable for various industrial and electronic applications. Purchase online now and enhance your assembly performance with trusted 3M technology.
Get 3M N25406003RB today—built for reliable electrical connections in compact designs.
Frequently Asked Questions
Where can I buy 3M N25406003RB?
You can click on the BUY or RFQ button to purchase N25406003RB from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part N25406003RB?
You can download the N25406003RB datasheet or visit the 3M website for support.
Who is the manufacturer of N25406003RB?
3M
