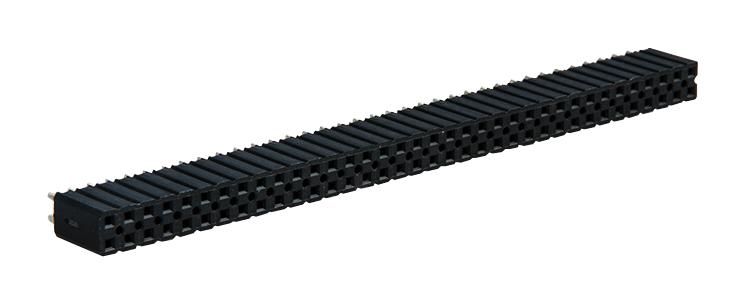

3M 9299750106RK Pin Header
The 3M™ Pin Strip Header Single and Dual Row is a reliable electrical connector designed for edge connections on printed circuit boards. Available in straight and right-angle configurations, with solder tails and various plating options including gold, matte tin, and tin-lead, it supports high-temperature processing up to 260°C. Made from flame-retardant PBT or high-temperature PCT plastic, it features solder stand-off for wave soldering, board pin retention, and a compact design suitable for various electronic applications, ensuring secure connections and durability in demanding environments.
3M 9299750106RK Pin Header Specifications:
- Material: Glass Filled Polyester or High Temperature PCT
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Options: Gold, Matte Tin, Tin-Lead
- Current Rating: 2.5A
- Insulation Resistance: >5x10⁹Ω at 500V
- Withstanding Voltage: 1500V AC at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C (per J-STD-020C)
- Environmental Level: Level 1 (J-STD-020C)
Buy the 3M Series 929 Pin Header: Single & Dual Row, Solder Tails, Gold & Tin Plating
Purchase 3M Series 929 pin headers online today and enjoy seamless PCB edge connectivity with reliable solder tails, high-temperature plastic, and versatile plating options including gold, tin, and tin-lead. Designed for wave or IR soldering, these headers ensure durable and stable electrical connections. Their compact, stackable design supports efficient assembly in electronic manufacturing. By buying online, you get quick access to high-quality interconnect components that meet rigorous environmental and safety standards, ideal for robust electronic device assembly and prototype development.
Buy 3M 929 Series pin headers now and ensure secure, high-temperature PCB connections with durable solder tails and multiple plating options.
Frequently Asked Questions
Where can I buy 3M 9299750106RK?
You can click on the BUY or RFQ button to purchase 9299750106RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299750106RK?
You can download the 9299750106RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9299750106RK?
3M
