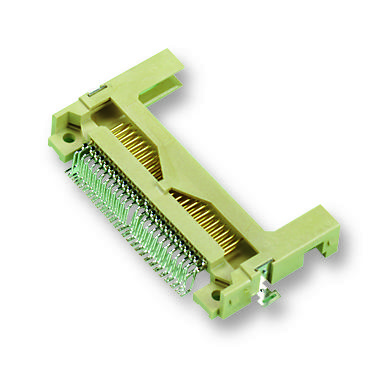

3M N7E507516PK20 CompactFlash Card Header
The 3M CompactFlash Type I Card Header is a surface-mount interconnect solution designed for reliable data transfer in embedded systems. Constructed with Liquid Crystal Polyester (LCP), it meets UL 94V-0 flammability standards and features copper alloy contacts with gold flash over palladium-nickel plating for optimal conductivity and corrosion resistance. Capable of handling up to 5 A current, it withstands temperatures from -55°C to +85°C. The header includes options for ejector mechanisms or retainer clips, ensuring stability even in high-vibration environments, and is RoHS compliant for eco-friendly applications.
3M N7E507516PK20 CompactFlash Card Header Specifications:
- Insulation Material: Liquid Crystal Polyester (LCP)
- Flammability: UL 94V-0
- Contact Material: Copper Alloy
- Contact Plating: Gold flash over palladium-nickel
- Solder Tails: 50" [ 1.27 mm ] 85/15 Tin-Lead or Gold Flash
- Current Rating: 5 A
- Insulation Resistance: >1 x 10^10 Ω at 500 V
- Withstanding Voltage: 500 V AC at sea level
- Temperature Rating: -55°C to +85°C
- Process Rating: Max 260°C per J-STD-020C
- Board Clearance: 1.64 mm standoff
- Physical Dimensions Include: Pin spacing 0.635 mm, various pin lengths
- Retainer Clip: Stainless Steel type 302, 1.0 mm diameter wire
- Ejector Option: Button ejector with sliding length approximately 17.4 mm
- RoHS Compliant: Yes, with options PG, PK suffixes
Buy the Buy 3M CompactFlash Card Header Part Number N7E507516PK20 Online
Purchase the 3M CompactFlash Type I Card Header N7E507516PK20 online to enhance your device’s data storage reliability. This high-quality surface-mount connector features a robust design with gold-plated contacts for maximum conductivity, compatible with RoHS standards for environmental safety. Whether you need the ejector or retainer clip option, it ensures secure attachment even under high vibration conditions. Suitable for industrial applications requiring a maximum current of 5 A, and operating efficiently from -55°C to +85°C, this header offers durability, ease of installation, and dependable performance for your electronic projects.
Order your 3M CompactFlash Card Header N7E507516PK20 today and ensure your embedded systems have reliable, high-quality data connectivity.
Frequently Asked Questions
Where can I buy 3M N7E507516PK20?
You can click on the BUY or RFQ button to purchase N7E507516PK20 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part N7E507516PK20?
You can download the N7E507516PK20 datasheet or visit the 3M website for support.
Who is the manufacturer of N7E507516PK20?
3M
